Schlage S70LD NEP Classroom Lever Lock, Less Cylinder

Schlage S70LD NEP Grade 2 Tubular Lock, Classroom Function, Neptune Lever, Less Cylinder

Function: Classroom - ANSI F84
• Outside lever locked and unlocked by key
• Inside lever always unlocked

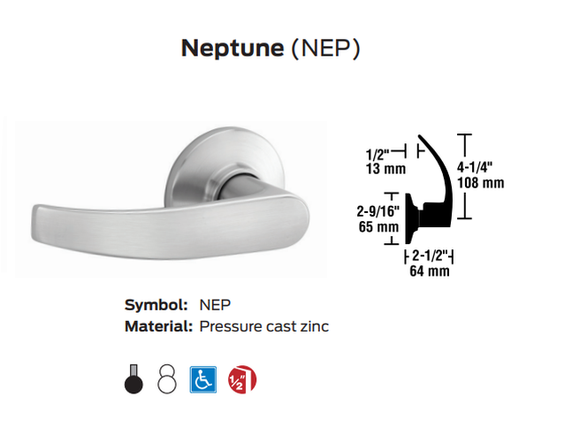

Lever Style: Neptune (NEP)

Specifications
Handing: Not handed

Door thickness: 1 3⁄8" to 2" (35 mm-51 mm)

Backset: Universal backset latches standard, fit either 2 3⁄8" (60 mm) or 2 3⁄4" (70 mm).

Cylinder: LD - Less Cylinder

Fronts: Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3⁄4" backset standard.

Lock chassis: Tubular construction. Zinc with steel cover.

Latch bolt: Brass, chrome plated, 1⁄2" (13 mm) throw, deadlocking.

Exposed trim: Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze.

Strike: T-strike 1 1/8" x 2 3⁄4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.

Warranty:
Commercial: Three-year limited.

Certifications
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C. California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)
All levers with a return to door of 1⁄2" (64mm) or less comply.

UL / cUL: All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify less cylinder and order Primus 20-500 Series cylinder separately.
ADA compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act

Model: Schlage S70LD NEP 626, S70LD NEP 605, S70LD NEP 606, S70LD NEP 612, S70LD NEP 613, S70LD NEP 625
