Schlage S170 JUP Single Dummy Lever Lock, Jupiter Style

Schlage S170 JUP Grade 2 Tubular Lock, Single Dummy Trim Function, Non-Keyed, Jupiter Lever

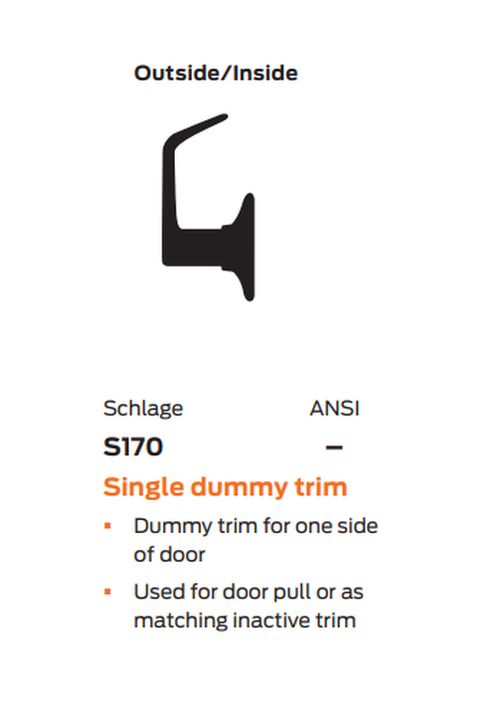

Function: Single dummy trim
• Dummy trim for one side of door
• Used for door pull or as matching inactive trim

Lever Style: Jupiter (JUP)

Specifications
Handing: Not handed

Door thickness: 1 3⁄8" to 2" (35 mm-51 mm) except S40D: 1 3⁄8" to 1 7⁄8” (35 mm-48 mm)

Fronts: Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3⁄4" backset standard.

Lock chassis: Tubular construction. Zinc with steel cover.

Latch bolt: Brass, chrome plated, 1⁄2" (13 mm) throw, deadlocking.

Exposed trim: Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze.

Warranty:
Commercial: Three-year limited.

Certifications
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C. California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)
All levers with a return to door of 1⁄2" (64mm) or less comply.

UL / cUL: All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify less cylinder and order Primus 20-500 Series cylinder separately.
ADA compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act

Model: Schlage S170 JUP 626, S170 JUP 605, S170 JUP 606, S170 JUP 612, S170 JUP 613, S170 JUP 625
