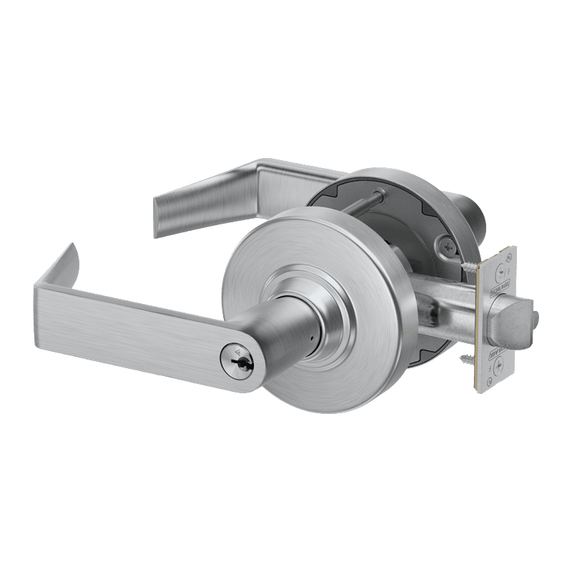

Schlage PC80 RHO Grade 1 Storeroom Cylindrical Lock, Rhodes Style

Schlage PC80 RHO Grade 1 Storeroom Cylindrical Lock, Rhodes Lever with Rose

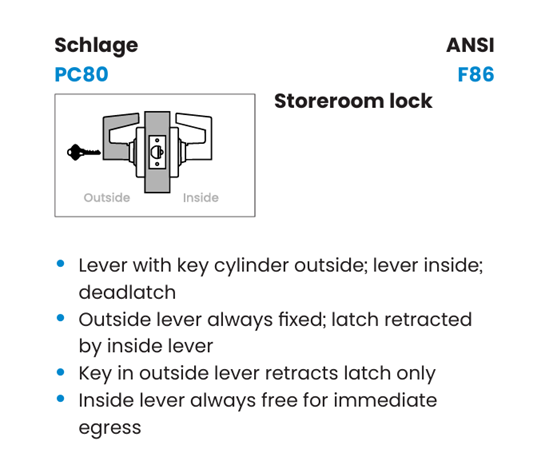

Function: Storeroom lock - ANSI F86
• Lever with key cylinder outside; lever inside; deadlatch
• Outside lever always fixed; latch retracted by inside lever
• Key in outside lever retracts latch only
• Inside lever always free for immediate egress
Request to Exit (RX) available, kit sold separately.

Lever Style: Rhodes (RHO)

Chassis
Material: Modular design of zinc and steel components plated for corrosion protection
Door thickness: Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified
Handing: Non-handed

Rose: Wrought brass, plated to match product finish specification

Backset: 2-3/4" (70 mm) standard.

Latch bolt: Standard: 1⁄2" (12 mm) throw spring latch or deadlatch (Stainless Steel)

Strike: Standard: ANSI curved lip: 1-1⁄4" x 4-7⁄8" x 1-3⁄16" (32 mm x 124 mm x 30 mm)

Faceplate: Standard: Square corner, 1-1/8" x 2-1/4" (28 mm x 57 mm) with screws

Keying
Formats Standard: 6-pin Conventional cylinder with two patented keys
Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit Sargent.

Access security: Standard: 6-pin, patented Everest 29 S123 keyway

Warranty: 5 year limited mechanical warranty

Certifications
ANSI/BHMA All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks1
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option
California State Reference Code
All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Longitude and Boardwalk)
Federal Meets FF-H-106C Series 161

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Model: Schlage PC80P RHO 626, PC80P RHO 613, PC80P RHO 643E, PC80P RHO 622, PC80J RHO 626, PC80J RHO 613, PC80J RHO 643E, PC80J RHO 622, PC80B RHO 626, PC80B RHO 613, PC80B RHO 643E, PC80B RHO 622, PC80L RHO 626, PC80L RHO 613, PC80L RHO 643E, PC80L RHO 622
