Schlage PC70 RHO Grade 1 Classroom Exterior Lockdown Cylindrical Lock, Rhodes Style

Schlage PC70 RHO Grade 1 Classroom Exterior Lockdown Cylindrical Lock, Rhodes Lever with Rose

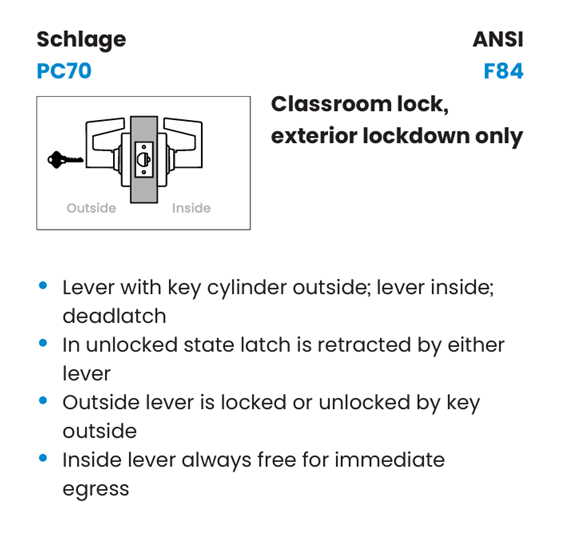

Function: Classroom lock, exterior lockdown only - ANSI F84
• Lever with key cylinder outside; lever inside; deadlatch
• In unlocked state latch is retracted by either lever
• Outside lever is locked or unlocked by key outside
• Inside lever always free for immediate egress

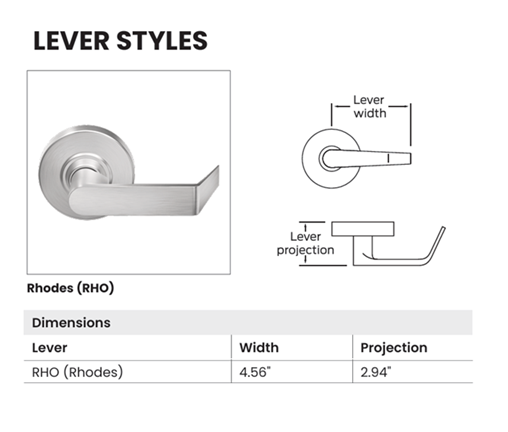

Lever Style: Rhodes (RHO)

Chassis
Material: Modular design of zinc and steel components plated for corrosion protection
Door thickness: Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified
Handing: Non-handed

Rose: Wrought brass, plated to match product finish specification

Backset: 2-3/4" (70 mm) standard.

Latch bolt: Standard: 1⁄2" (12 mm) throw spring latch or deadlatch (Stainless Steel)

Strike: Standard: ANSI curved lip: 1-1⁄4" x 4-7⁄8" x 1-3⁄16" (32 mm x 124 mm x 30 mm)

Faceplate: Standard: Square corner, 1-1/8" x 2-1/4" (28 mm x 57 mm) with screws

Keying
Formats Standard: 6-pin Conventional cylinder with two patented keys
Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit Sargent.

Access security: Standard: 6-pin, patented Everest 29 S123 keyway

Warranty: 5 year limited mechanical warranty

Certifications
ANSI/BHMA All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks1
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option
California State Reference Code
All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Longitude and Boardwalk)
Federal Meets FF-H-106C Series 161

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Model: Schlage PC70P RHO 626, PC70P RHO 613, PC70P RHO 643E, PC70P RHO 622, PC70J RHO 626, PC70J RHO 613, PC70J RHO 643E, PC70J RHO 622, PC70B RHO 626, PC70B RHO 613, PC70B RHO 643E, PC70B RHO 622, PC70L RHO 626, PC70L RHO 613, PC70L RHO 643E, PC70L RHO 622
