Schlage PC50 ATH Grade 1 Entrance/Office Cylindrical Lock, Athens Style

Schlage PC50 ATH Grade 1 Entrance/Office Cylindrical Lock, Athens Lever with Rose

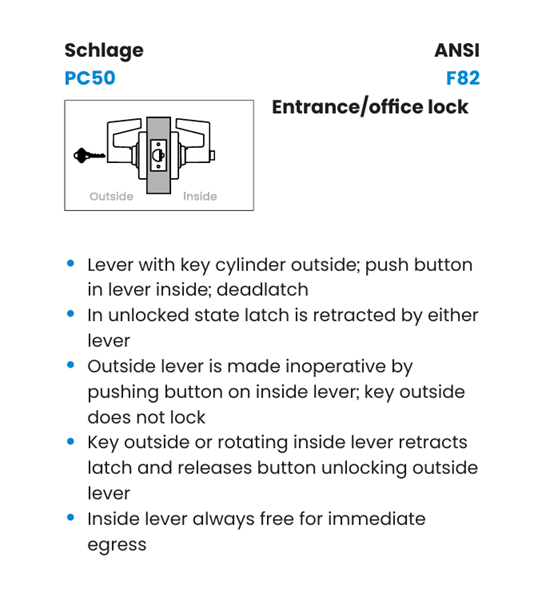

Function: Entrance/office lock - ANSI F82
• Lever with key cylinder outside; push button in lever inside; deadlatch
• In unlocked state latch is retracted by either lever
• Outside lever is made inoperative by pushing button on inside lever; key outside does not lock
• Key outside or rotating inside lever retracts latch and releases button unlocking outside lever
• Inside lever always free for immediate egress

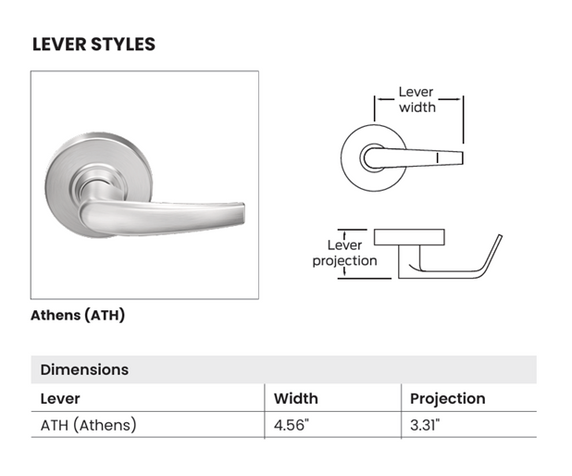

Lever Style: Athens (ATH)

Chassis
Material: Modular design of zinc and steel components plated for corrosion protection
Door thickness: Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified
Handing: Non-handed

Rose: Wrought brass, plated to match product finish specification

Backset: 2-3/4" (70 mm) standard.

Latch bolt: Standard: 1⁄2" (12 mm) throw spring latch or deadlatch (Stainless Steel)

Strike: Standard: ANSI curved lip: 1-1⁄4" x 4-7⁄8" x 1-3⁄16" (32 mm x 124 mm x 30 mm)

Faceplate: Standard: Square corner, 1-1/8" x 2-1/4" (28 mm x 57 mm) with screws

Keying
Formats Standard: 6-pin Conventional cylinder with two patented keys
Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit Sargent.

Access security: Standard: 6-pin, patented Everest 29 S123 keyway

Warranty: 5 year limited mechanical warranty

Certifications
ANSI/BHMA All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks1
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option
California State Reference Code
All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Longitude and Boardwalk)
Federal Meets FF-H-106C Series 161

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Model: Schlage PC50P ATH 626, PC50P ATH 613, PC50P ATH 643E, PC50P ATH 622, PC50J ATH 626, PC50J ATH 613, PC50J ATH 643E, PC50J ATH 622, PC50B ATH 626, PC50B ATH 613, PC50B ATH 643E, PC50B ATH 622, PC50L ATH 626, PC50L ATH 613, PC50L ATH 643E, PC50L ATH 622
