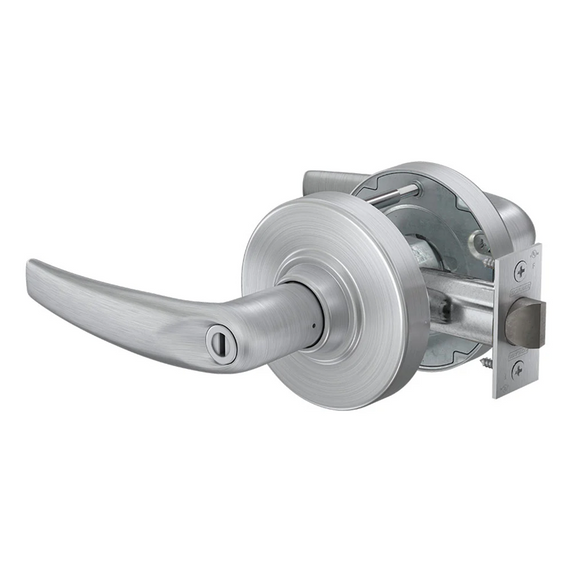

Schlage PC40 ATH Grade 1 Bath/Bedroom Privacy Cylindrical Lock, Athens Style

Schlage PC40 ATH Grade 1 Bath/Bedroom Privacy Cylindrical Lock, Non-Keyed, Athens Lever with Rose

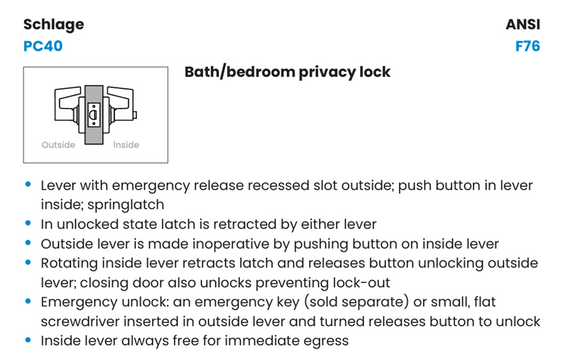

Function: Bath/bedroom privacy lock - ANSI F76
• Lever with emergency release recessed slot outside; push button in lever inside; springlatch
• In unlocked state latch is retracted by either lever
• Outside lever is made inoperative by pushing button on inside lever
• Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lock-out
• Emergency unlock: an emergency key (sold separate) or small, flat screwdriver inserted in outside lever and turned releases button to unlock
• Inside lever always free for immediate egress
Note: To order an emergency key, use part number 35-270

Lever Style: Athens (ATH)

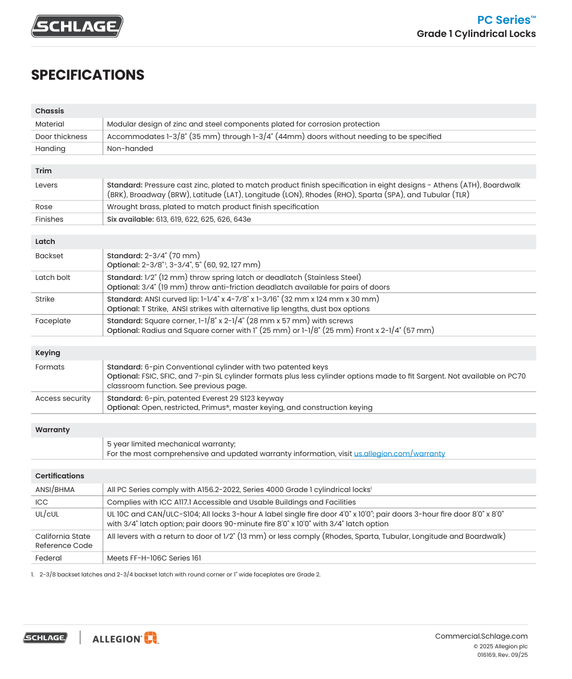

Chassis
Material: Modular design of zinc and steel components plated for corrosion protection
Door thickness: Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified
Handing: Non-handed

Rose: Wrought brass, plated to match product finish specification

Backset: 2-3/4" (70 mm) standard.

Latch bolt: Standard: 1⁄2" (12 mm) throw spring latch or deadlatch (Stainless Steel)

Strike: Standard: ANSI curved lip: 1-1⁄4" x 4-7⁄8" x 1-3⁄16" (32 mm x 124 mm x 30 mm)

Faceplate: Standard: Square corner, 1-1/8" x 2-1/4" (28 mm x 57 mm) with screws

Access security: Standard: 6-pin, patented Everest 29 S123 keyway

Warranty: 5 year limited mechanical warranty

Certifications
ANSI/BHMA All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks1
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option
California State Reference Code
All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Longitude and Boardwalk)
Federal Meets FF-H-106C Series 161

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Model: Schlage PC40 ATH 626, PC40 ATH 605, PC40 ATH 606, PC40 ATH 612, PC40 ATH 613, PC40 ATH 619, PC40 ATH 625, PC40 ATH 643E
