Schlage PC172 SPA Grade 1 Double Dummy Cylindrical Lock, Sparta Style

Schlage PC172 SPA Grade 1 Double Dummy Cylindrical Lock, Non-Keyed, Sparta Lever with Rose

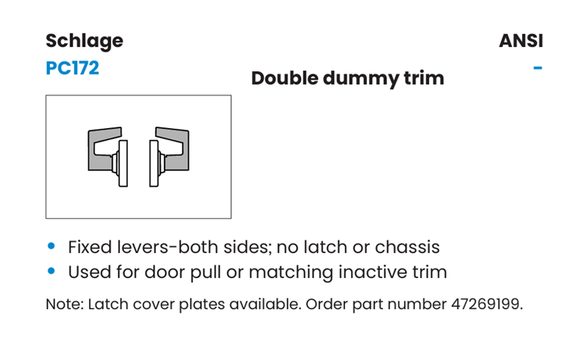

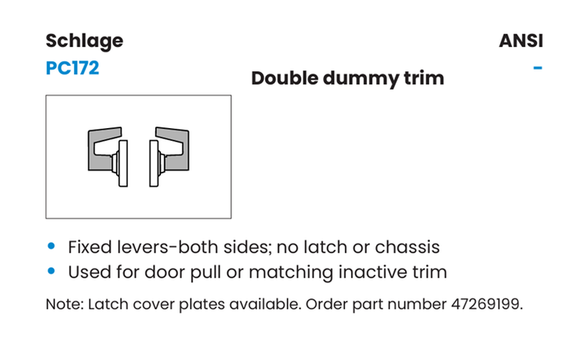

Function: Double dummy
• Fixed levers-both sides; no latch or chassis
• Used for door pull or matching inactive trim
Note: Latch cover plates available. Order part number 47269199

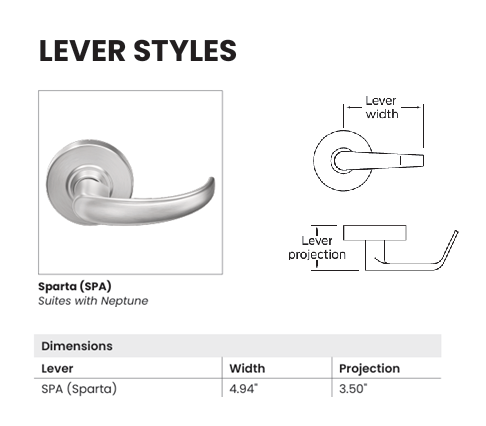

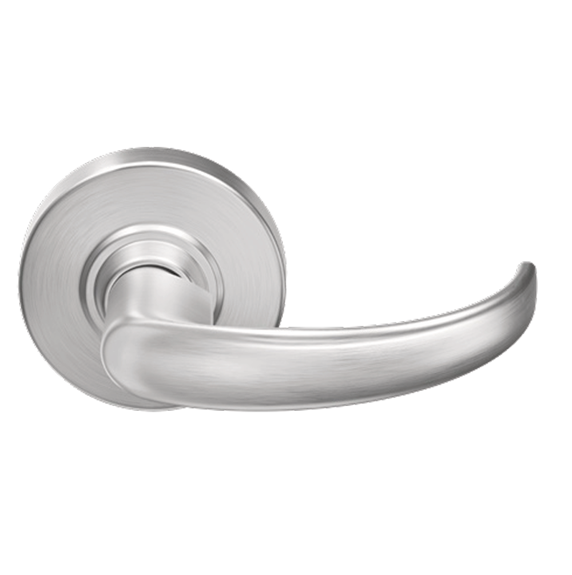

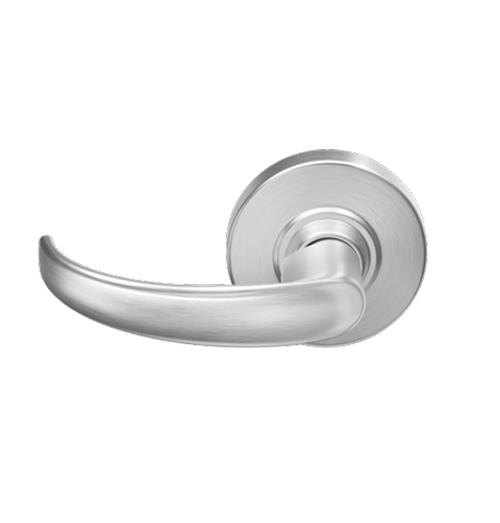

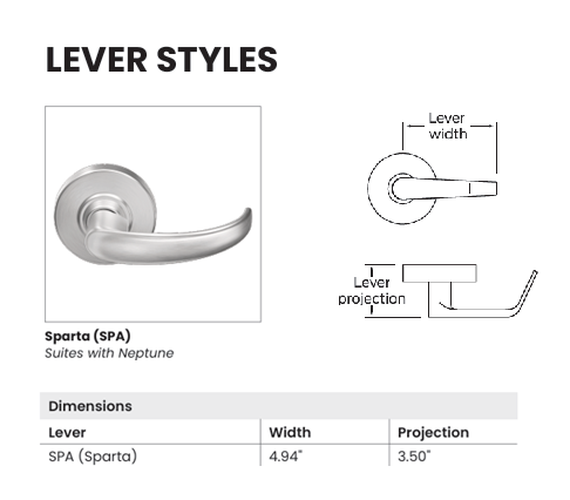

Lever Style: Sparta (SPA)

Chassis
Material: Modular design of zinc and steel components plated for corrosion protection
Door thickness: Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified
Handing: Non-handed

Rose: Wrought brass, plated to match product finish specification

Access security: Standard: 6-pin, patented Everest 29 S123 keyway

Warranty: 5 year limited mechanical warranty

Certifications
ANSI/BHMA All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks1
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option
California State Reference Code
All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Longitude and Boardwalk)
Federal Meets FF-H-106C Series 161

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Model: Schlage PC172 SPA 626, PC172 SPA 605, PC172 SPA 606, PC172 SPA 612, PC172 SPA 613, PC172 SPA 619, PC172 SPA 625, PC172 SPA 643E
