Schlage PC10 RHO Grade 1 Passage Cylindrical Lock, Rhodes Style

Schlage PC10 RHO Grade 1 Passage Cylindrical Lock, Non-Keyed, Rhodes Lever with Rose

Function: Passage Latch - ANSI F75
• Levers both sides; springlatch
• Latch retracted by lever from either side at all times
• Inside lever always free for immediate egress.

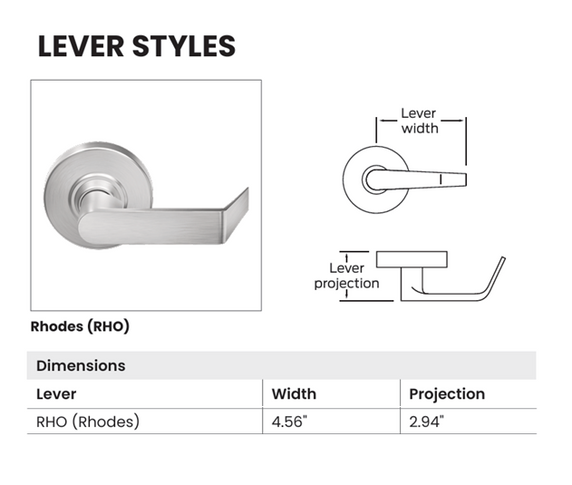

Lever Style: Rhodes (RHO)

Chassis
Material: Modular design of zinc and steel components plated for corrosion protection
Door thickness: Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified
Handing: Non-handed

Rose: Wrought brass, plated to match product finish specification

Backset: 2-3/4" (70 mm) standard.

Latch bolt: Standard: 1⁄2" (12 mm) throw spring latch or deadlatch (Stainless Steel)

Strike: Standard: ANSI curved lip: 1-1⁄4" x 4-7⁄8" x 1-3⁄16" (32 mm x 124 mm x 30 mm)

Faceplate: Standard: Square corner, 1-1/8" x 2-1/4" (28 mm x 57 mm) with screws

Keying: Standard: 6-pin Conventional cylinder with two patented keys; Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit Sargent. Not available on PC70 classroom function

Access security: Standard: 6-pin, patented Everest 29 S123 keyway

Warranty: 5 year limited mechanical warranty

Certifications
ANSI/BHMA All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks1
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option
California State Reference Code
All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Longitude and Boardwalk)
Federal Meets FF-H-106C Series 161

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Model: Schlage PC10 RHO 626, PC10 RHO 605, PC10 RHO 606, PC10 RHO 612, PC10 RHO 613, PC10 RHO 619, PC10 RHO 625, PC10 RHO 643E
