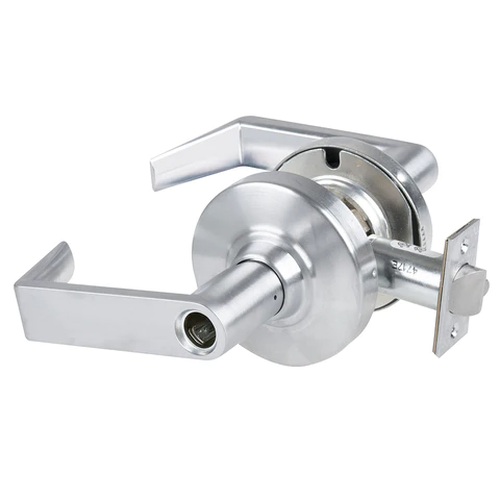

Schlage ND96LD RHO Vandlgard Heavy Duty Storeroom Lever Lock, Less Cylinder

Schlage ND96LD RHO Grade 1 Vandlgard Heavy Duty Storeroom Lock, Rhodes Lever, Less Cylinder, Non-Handed

Function: Storeroom
• Outside lever always disengaged.
• Entrance by key only.
• Vandlgard allows outside spindle to disengage from latch when locked.
• Inside lever always free for immediate egress.

Vandlgard™ trim is specifically designed for highly abusive environments. The outside
lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis

Lever Style: Rhodes (RHO)

Cylinder: Less Cylinder

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Faceplate Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel.

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Lever: Nine designs, pressure cast zinc, plated to match product finish specification

Rose: Wrought brass, bronze, or zinc, plated to match product finish specification

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND96LD RHO 626, ND96LD RHO 605, ND96LD RHO 606, ND96LD RHO 612, ND96LD RHO 613, ND96LD RHO 619, ND96LD RHO 625
