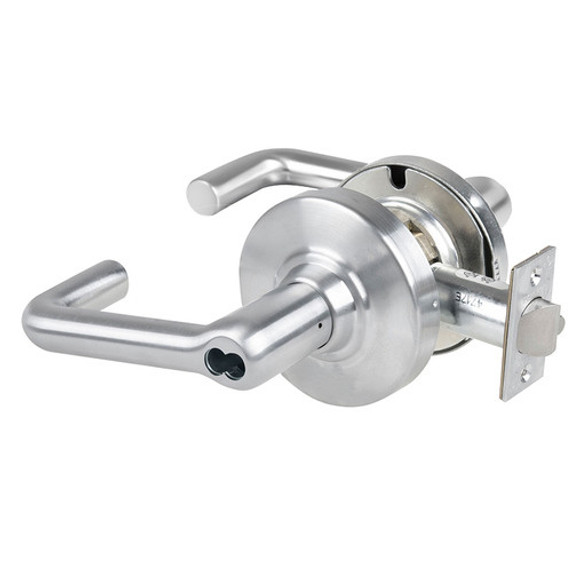

Schlage ND96BDEL TLR Heavy Duty Electrified Vandlgard Storeroom Lock - Fail Safe, Accepts Small Format IC Core, Tubular Style

In Stock
$788.94
Price: $1,461.00
Instant Savings $672.06

FREE SHIPPING

SKU: ND96BDEL TLR 626
Series: ND Series - Grade 1
Function: Storeroom w/ Vandlgard - Fail Safe
Lever Style: TLR - Tubular
Cylinder: BD - accepts "Best" Interchangeable core
Operating mode: Fail Safe - Power fail unlocks outside lever
Choose Options:
Hurry! Only left

Grade 1 Electrified Cylindrical Lock, Storeroom Function with Vandlgard, 12-24V DC, Fail Safe, 2-3/4" Backset, Tubular Lever, SFIC Prep

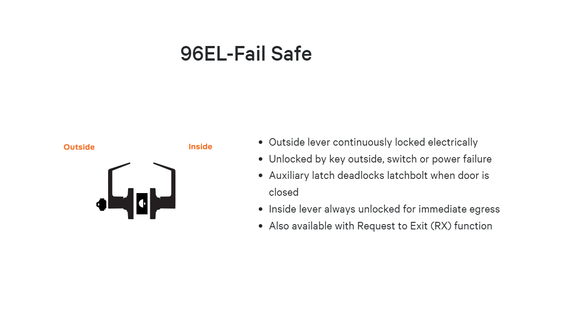

96EL - Fail Safe
• Outside lever continuously locked electrically
• Unlocked by key outside, switch or power failure
• Auxiliary latch deadlocks latchbolt when door is closed
• Inside lever always unlocked for immediate egress
• Also available with Request to Exit (RX) function

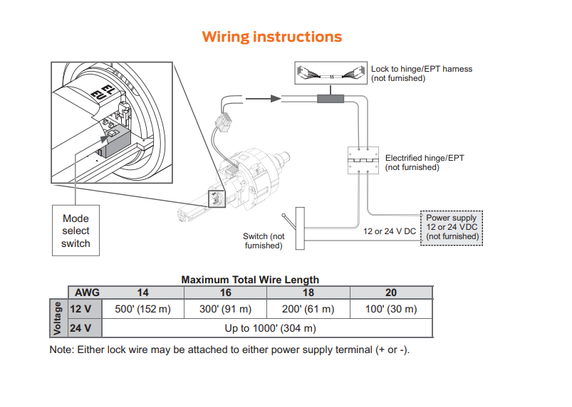

Electrical requirements
• Input voltage: Autodetecting 12-24V DC, + 10%
• Max current draw: 0.230 amp (230mA)
• Holding current: 0.010 amp (10mA)
• Temperature range: 32°F-120°F (0°-49°C)

 Door thickness: 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard.

Handing: Non-Handed

Faceplate Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel.


Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16"

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Warranty: 10 years

Option:
Request to Exit Modular (RX) - 3A @ 125VAC / 2A @ 30VDC
• Normally open, normally closed and common leads provided
• Electrical rating: 2A, 30VDC max

Certifications:

ANSI/BHMA: All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL: All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code: All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code: Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal: Meets FF-H-106C Series 161

Model: Schlage ND96BDEL TLR 626, ND96BDEL TLR 605, ND96BDEL TLR 606, ND96BDEL TLR 612, ND96BDEL TLR 613, ND96BDEL TLR 619, ND96BDEL TLR 625, ND96BDEL TLR 643E
