Schlage ND94BD TLR Vandlgard Heavy Duty Classroom Lever Lock, Accepts small format IC core

Schlage ND94BD TLR Vandlgard Heavy Duty Classroom Lever Lock, Accepts small format IC core (core not included), Tubular Lever

Accepts "Best" small format Interchangeable core, core not included

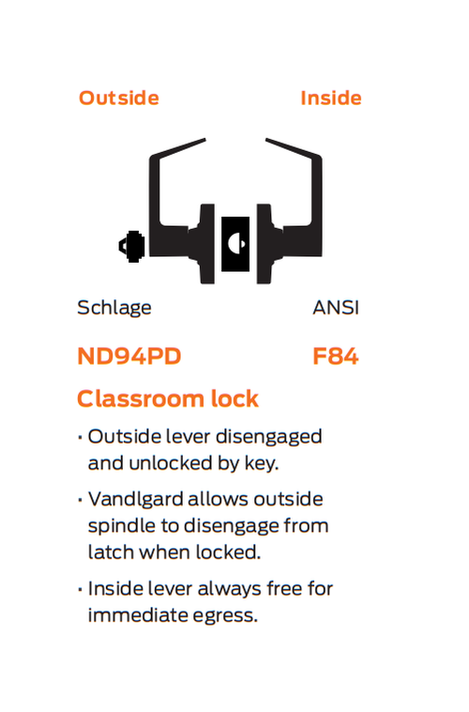

Function: Classroom lock - ANSI F84
• Outside lever disengaged and unlocked by key.
• Vandlgard allows outside spindle to disengage from latch when locked.
• Inside lever always free for immediate egress.

Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis

Lever Style: Tubular (TLR)

Cylinder: SFIC Prep, Less Core

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Keying: 6-Pin Solid brass Cylinder, with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

Faceplate Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome,

Lever: Nine designs, pressure cast zinc, plated to match product finish specification

Rose: Wrought brass, bronze, or zinc, plated to match product finish specification

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND94BD TLR 26D, ND94BD TLR 605, ND94BD TLR 606, ND94BD TLR 612, ND94BD TLR 613, ND94BD TLR 619, ND94BD TLR 625
