Schlage ND93BD RHO Vandlgard Heavy Duty Vestibule Lever Lock, Accepts small format IC core

Schlage ND93BD RHO Vandlgard Heavy Duty Vestibule Lever Lock, Accepts small format IC core (core not included), Rhodes Lever

Accepts "Best" small format Interchangeable core, core not included

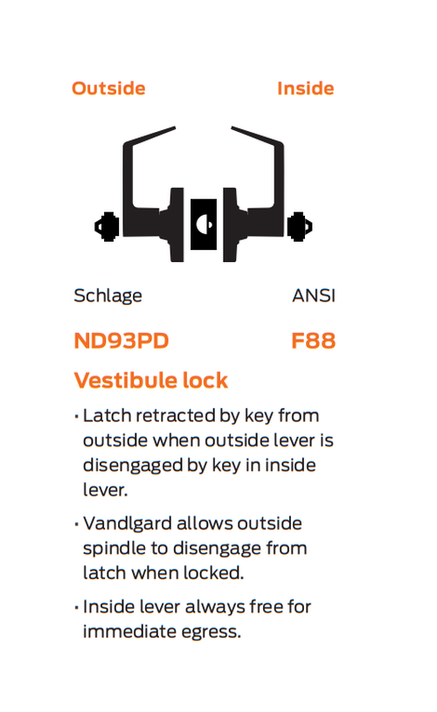

Function: Vestibule lock - ANSI F88
• Latch retracted by key from outside when outside lever is disengaged by key in inside lever.
• Vandlgard allows outside spindle to disengage from latch when locked.
• Inside lever always free for immediate egress

Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis

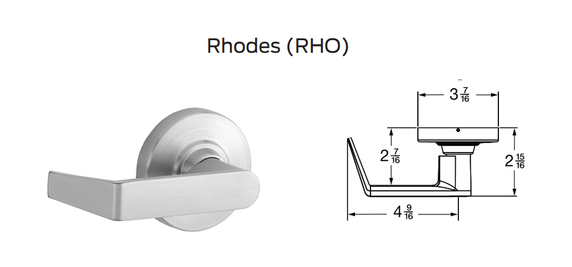

Lever Style: Rhodes (RHO)

Cylinder: SFIC Prep, Less Core

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Faceplate: Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel - Optional : 3⁄4" throw anti-friction bolt available for pairs of doors (please call).

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome,

Lever: Nine designs, pressure cast zinc, plated to match product finish specification

Rose: Wrought brass, bronze, or zinc, plated to match product finish specification

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND93BD RHO 626, ND93BD RHO 605, ND93BD RHO 606, ND93BD RHO 612, ND93BD RHO 613, ND93BD RHO 619, ND93BD RHO 625
