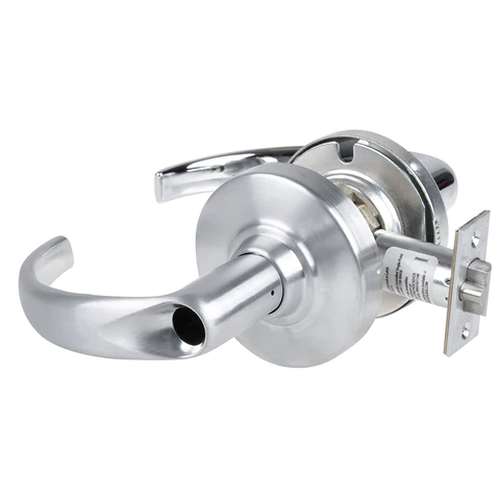

Schlage ND80LD SPA Heavy Duty Storeroom Lever Lock, Less Cylinder

Schlage ND80LD SPA Grade 1 Storeroom Lock, Sparta Lever, Less Cylinder, Non-Handed

Function: Storeroom - ANSI F86
• Outside lever is fixed
• Entrance by key only
• Inside lever always free for immediate egress

Lever Style: Sparta (SPA)

Cylinder: Less Cylinder

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Faceplate: Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel.

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Lever: Nine designs, pressure cast zinc, plated to match product finish specification

Rose: Wrought brass, bronze, or zinc, plated to match product finish specification

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND80LD SPA 26D, ND80LD SPA 605, ND80LD SPA 606, ND80LD SPA 612, ND80LD SPA 613, ND80LD SPA 619, ND80LD SPA 625
