Schlage ND73BD SPA Heavy Duty Corridor Lever Lock, Accepts small format IC core

Schlage ND73BD SPA Heavy Duty Corridor Lever Lock, Accepts small format IC core (core not included), Sparta Lever

Accepts "Best" Interchangeable cores, core not included

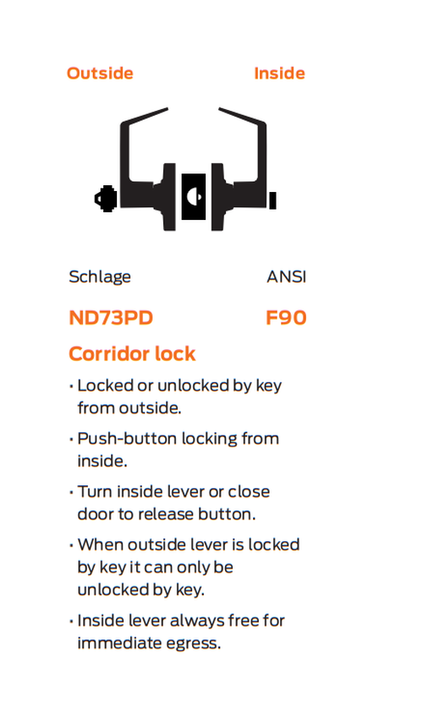

Function: Corridor- ANSI F90
• Locked or unlocked by key from outside
• Push-button locking from inside.
• Turn inside lever or close door to release button
• When outside lever is locked by key it can only be unlocked by key.
• Inside lever always free for immediate egress.

Lever Style: Sparta (SPA)

Cylinder: SFIC Prep, Less Core

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Faceplate Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome,

Lever: Nine designs, pressure cast zinc, plated to match product finish specification

Rose: Wrought brass, bronze, or zinc, plated to match product finish specification

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND73BD SPA 26D, ND73BD SPA 605, ND73BD SPA 606, ND73BD SPA 612, ND73BD SPA 613, ND73BD SPA 619, ND73JD SPA 625
