Schlage ND66BD ATH Heavy Duty Store Lever Lock, Accepts small format IC core

Schlage ND66BD ATH Heavy Duty Store Lever Lock, Accepts small format IC core (core not included), Athens Lever

Accepts "Best" Interchangeable cores, core not included

Function:Store lock - ANSI F91
• Key in either lever locks or unlocks both levers

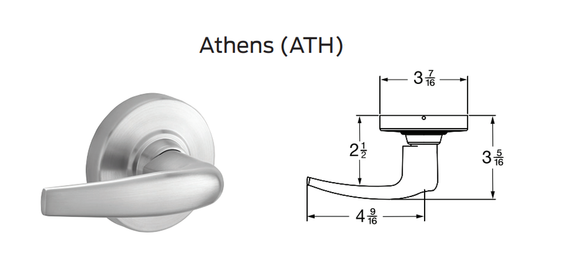

Lever Style: Athens (ATH)

Cylinder: SFIC Prep, Less Core

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Faceplate: Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Lever: Nine designs, pressure cast zinc, plated to match product finish specification

Rose: Wrought brass, bronze, or zinc, plated to match product finish specification

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND66BD ATH 26D, ND66BD ATH 605, ND66BD ATH 606, ND66BD ATH 612, ND66BD ATH 613, ND66BD ATH 619, ND66BD ATH 625
