Schlage ND53BD RHO Heavy Duty Entrance Lever Lock, Accepts small format IC core (core not included), Rhodes Lever
Accepts "Best" Interchangeable cores, core not included

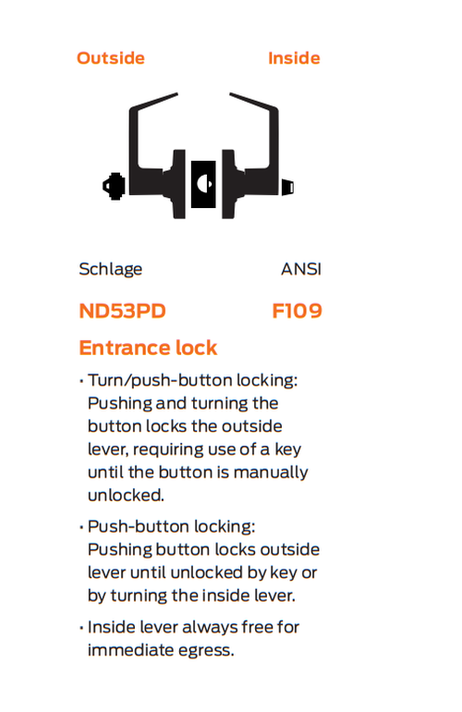

Function: Entrance/office - ANSI F109
• Turn/push-button locking:
Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked.
• Push-button locking:
Pushing button locks outside lever until unlocked by key or by turning the inside lever.
• Inside lever always free for immediate egress.
Lever Style: Rhodes (RHO)
Cylinder: SFIC Prep, Less Core
Handing: Non-Handed
The door range is 1 5/8"-2 1/8" standard.
Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.
Keying: 6-Pin Solid brass Cylinder, with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.
Faceplate Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors
Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel
Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths
Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze
Lever: Nine designs, pressure cast zinc, plated to match product finish specification
Rose: Wrought brass, bronze, or zinc, plated to match product finish specification
Warranty: 10 years
Certifications:
ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option
CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)
FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
Federal Meets FF-H-106C Series 161
Model: Schlage ND53BD RHO 626, ND53BD RHO 605, ND53BD RHO 606, ND53BD RHO 612, ND53BD RHO 613, ND53BD RHO 619, ND53BD RHO 625, ND53BD RHO 643E
