Schlage ND50PD RHO 626 IS-LOC Entrance/Office Lever Lock w/ Interior Locked/Unlocked Indicator, Satin Chrome Finish

Schlage ND50PD RHO IS-LOC Grade 1 Entrance/Office Cylindrical Lock, Conventional Cylinder, Rhodes Lever, 3-7/16" Rose Diameter, Interior Indicator "LOCKED/UNLOCKED"

Function: Entrance/office - ANSI F82
• Lever with key cylinder outside; push button in lever inside; deadlatch
• In unlocked state latch is retracted by either lever
• Outside lever is made inoperative by pushing button on inside lever; key outside does not lock
• Key outside or rotating inside lever retracts latch and releases button unlocking outside lever
• Inside lever always free for immediate egress
Note: Locks ordered with indicator trim fit 1-3/4" doors. Sold separate spacer kits allow application to doors 1-3/8" to 1-11/16".

IS-LOC - LOCKED/UNLOCKED Indicator for Inside of Door

ND Series Indicator Key Features
• Available in eight standard functions: Two privacy, Three security each with a Vandlgard functional option
• Single-sided indication trim is specific to function type
• Orderable in all ND Series finish and lever options
• Compatible with all ND key cylinder options ND Series Indicator Key Features
• Escutcheon trim design fits standard 1-3/4" door
• Spacer kits allow for additional door widths ranging from 1-3/8" to 1-11/16"
• Retrofit kits available for any ND Series lever style
• Carries the same UL 10C fire-rating and certifications of a standard Grade 1 ND Series lock

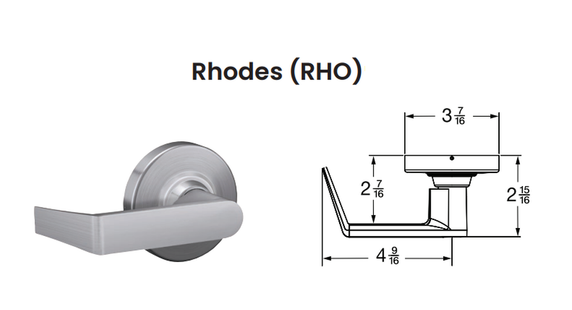

Lever Style: Rhodes (RHO)

Material: Modular design of zinc and steel components plated for corrosion protection

Door thickness: Standard: 1-5/8" (41 mm) to 2-1/8" (54 mm)

Levers: Pressure cast zinc, plated to match product finish specification in nine designs

Rose/escutcheon: Wrought brass or zinc, plated to match product finish specification

Finishes: 605, 606, 612, 613, 619, 622, 625, 626, 643e; optional antimicrobial coating is available on 626–order as 626AM

Keying: Standard: 6-pin Conventional cylinder with two patented keys.

Backset: Standard: 2-3/4" (70 mm) - Optional: 2-3/8" (60 mm)

Latch bolt: Standard: 1/2" (12 mm) throw spring latch or deadlatch (Stainless Steel)

Strike: Standard: ANSI curved lip: 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm) - Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options

Warranty: 10 years mechanical

Certifications
ANSI/BHMA: All ND Series comply with A156.2-2011, Series 4000 Grade 1 cylindrical locks; Wired electrified complies with
A156.25 (indoor

ICC: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL: UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code: All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Omega, Longitude
and Boardwalk)

FL Building Code: Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal: Meets FF-H-106C Series 161 BAA compliant, all function

Model: Schlage ND50PD RHO 626 RH IS-LOC, ND50PD RHO 626 LH IS-LOC
