Schlage ND50PD ATH Heavy Duty Entrance/office Lever Lock, Athens Style

Price: $820.00
Instant Savings $321.85

SKU: ND50PD ATH-626-ANSI-234
Condition: New
Availability: ✓ In Stock!
Series: ND Series - Grade 1
Lever Style: ATH - Athens
Function: 50 - Entrance/office
Cylinder: PD - 6-Pin conventional
Handing: Non-Handed – Completely reversible
ANSI: ANSI/BHMA A156.2 Series 4000, UL Listed
Choose Options:
Hurry! Only left

Schlage ND50PD ATH - Heavy Duty Entrance/office Lever Lock - Athens Style

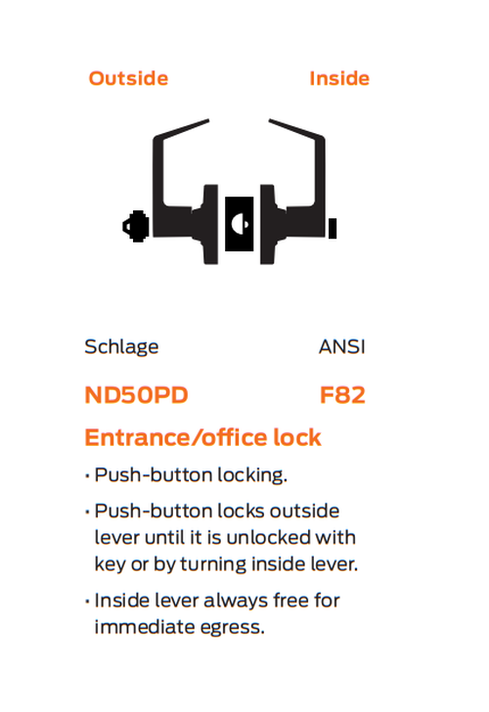

Function: Entrance/office - ANSI F82
• Push-button locking
• Push-button locks outside lever until it is unlocked with key or by turning inside lever
• Inside lever always free for immediate egress.

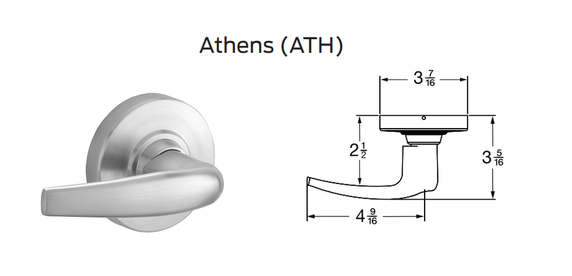

Lever Style: Athens (ATH)

Handing: Non-Handed
The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Keying: 6-Pin Solid brass Cylinder, with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

Faceplate Standard :
1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel.

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Lever: Nine designs, pressure cast zinc, plated to match product finish specification

Rose: Wrought brass, bronze, or zinc, plated to match product finish specification

Warranty: 10 years


ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND50PD ATH 26D, ND50PD ATH 605, ND50PD ATH 606, ND50PD ATH 612, ND50PD ATH 613, ND50PD ATH 619, ND50PD ATH 625
