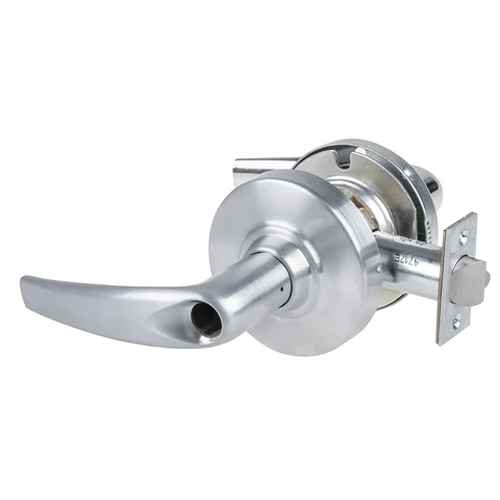

Schlage ND50LD ATH Grade 1 Entrance/Office Lock, Athens Lever, Less Cylinder, Non-Handed

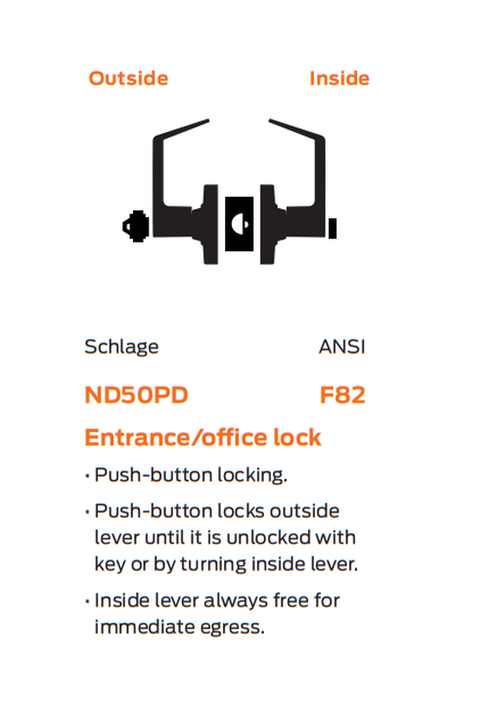

Function: Entrance/office - ANSI F82
• Push-button locking
• Push-button locks outside lever until it is unlocked with key or by turning inside lever
• Inside lever always free for immediate egress.

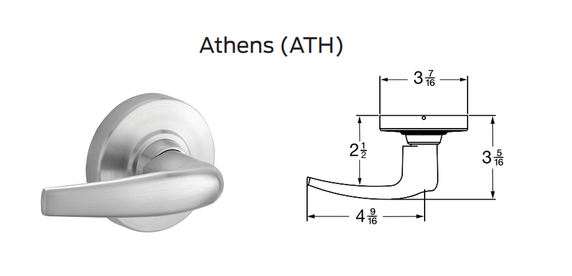

Lever Style: Athens (ATH)
Cylinder: Less Cylinder
Handing: Non-Handed
The door range is 1 5/8"-2 1/8" standard.
Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.
Faceplate: Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors
Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel.
Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths
Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze
Lever: Nine designs, pressure cast zinc, plated to match product finish specification
Rose: Wrought brass, bronze, or zinc, plated to match product finish specification
Warranty: 10 years
Certifications:
ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks
ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option
CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)
FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
Federal Meets FF-H-106C Series 161
Model: Schlage ND50LD ATH 26D, ND50LD ATH 605, ND50LD ATH 606, ND50LD ATH 612, ND50LD ATH 613, ND50LD ATH 619, ND50LD ATH 625
