Schlage ND40S ATH OS-OCC Bath/Bedroom Privacy Lever Lock w/ Exterior Vacant/Occupied Indicator

Schlage ND40S ATH OS-OCC Grade 1 Bed Bathroom Privacy Cylindrical Lock, Non-Keyed, Athens Lever, 3-7/16" Rose Diameter, Exterior Indicator "VACANT/OCCUPIED"

Function: Bath/Bedroom Privacy - ANSI F76
• Lever with emergency release recessed slot outside; push button in lever inside; springlatch
• In unlocked state latch is retracted by either lever
• Outside lever is made inoperative by pushing button on inside lever
• Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout
• Emergency unlock: an emergency key (sold separate) or small, flat screwdriver inserted in outside lever and turned releases button to unlock
• Inside lever always free for immediate egress
Note: Locks ordered with indicator trim fit 1-3/4" doors. Sold separate spacer kits allow application to doors 1-3/8" to 1-11/16".

OS-OCC - VACANT/OCCUPIED Indicator for Outside of Door

ND Series Indicator Key Features
• Available in eight standard functions: Two privacy, Three security each with a Vandlgard functional option
• Single-sided indication trim is specific to function type
• Orderable in all ND Series finish and lever options
• Compatible with all ND key cylinder options ND Series Indicator Key Features
• Escutcheon trim design fits standard 1-3/4" door
• Spacer kits allow for additional door widths ranging from 1-3/8" to 1-11/16"
• Retrofit kits available for any ND Series lever style
• Carries the same UL 10C fire-rating and certifications of a standard Grade 1 ND Series lock

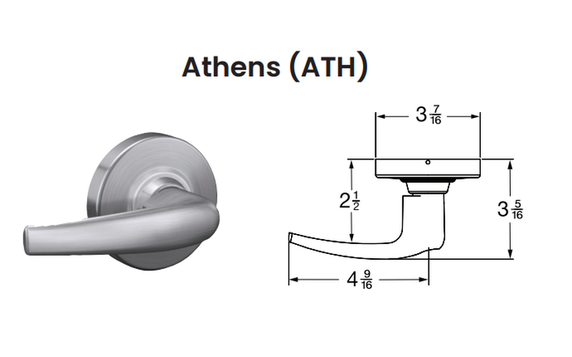

Lever Style: Athens (ATH)

Material: Modular design of zinc and steel components plated for corrosion protection

Door thickness: Standard: 1-5/8" (41 mm) to 2-1/8" (54 mm)

Levers: Pressure cast zinc, plated to match product finish specification in nine designs

Rose/escutcheon: Wrought brass or zinc, plated to match product finish specification

Finishes: 605, 606, 612, 613, 619, 622, 625, 626, 643e; optional antimicrobial coating is available on 626–order as 626AM

Backset: Standard: 2-3/4" (70 mm) - Optional: 2-3/8" (60 mm)

Latch bolt: Standard: 1/2" (12 mm) throw spring latch or deadlatch (Stainless Steel)

Strike: Standard: ANSI curved lip: 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm) - Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options

Warranty: 10 years mechanical

Certifications
ANSI/BHMA: All ND Series comply with A156.2-2011, Series 4000 Grade 1 cylindrical locks; Wired electrified complies with
A156.25 (indoor

ICC: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL: UL 10C and CAN/ULC-S104; All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3⁄4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code: All levers with a return to door of 1⁄2" (13 mm) or less comply (Rhodes, Sparta, Tubular, Omega, Longitude
and Boardwalk)

FL Building Code: Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal: Meets FF-H-106C Series 161 BAA compliant, all function

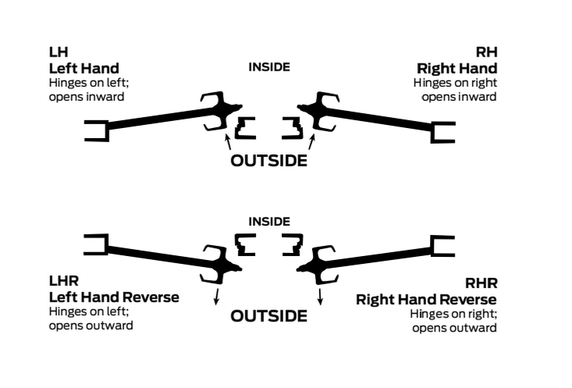

Model: Schlage ND40S ATH 626 RH OS-OCC, ND40S ATH 626 LH OS-OCC, ND40S ATH 622 RH OS-OCC, ND40S ATH 622 LH OS-OCC
