Schlage ND12D BRW Heavy Duty Exit Lever Lock, Broadway Style

Schlage ND12D BRW Heavy Duty Exit Lever Lock, Broadway Style

Function: Exit lock - ANSI F89
• Outside lever always fixed.
• Inside lever always free for immediate egress.

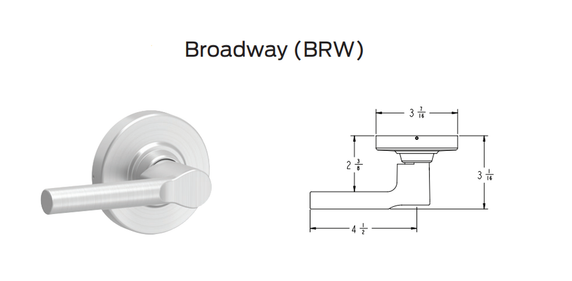

Lever Style: Broadway (BRW)

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Faceplate: Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND12D BRW 26D, ND12D BRW 605, ND12D BRW 606, ND12D BRW 612, ND12D BRW 613, ND12D BRW 619, ND12D BRW 625, ND12D BRW 643E
