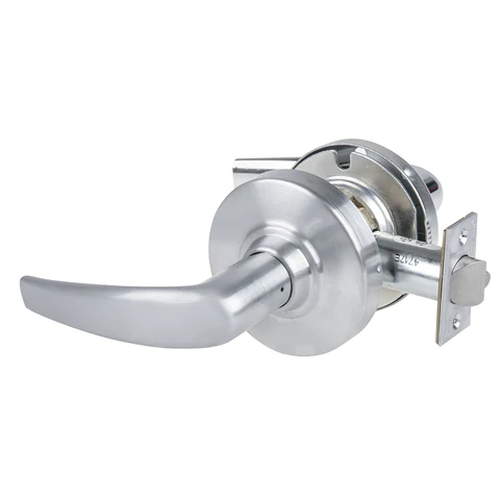

Schlage ND10S ATH Heavy Duty Passage Lever Lock, Athens Style

Schlage ND10S ATH Heavy Duty Passage Lever Lock, Athens Lever

Function: Passage Latch - ANSI F75
• Both levers always unlocked.

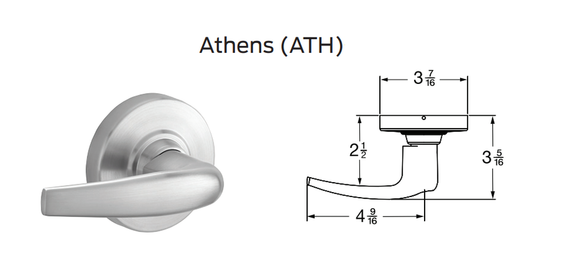

Lever Style: Athens (ATH)

Handing: Non-Handed

The door range is 1 5/8"-2 1/8" standard.

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available.

Faceplate Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors

Latch Bolt: Standard : 1⁄2" throw via Oil Impregnated Stainless Steel

Strikes: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 643E - Aged Bronze

Warranty: 10 years

Certifications:

ANSI/BHMA All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks.

ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option

CA Fire Code All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code Complies with Florida Building Code (ASTM E330, E1886, E1996)
and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal Meets FF-H-106C Series 161

Model: Schlage ND10S ATH 26D, ND10S ATH 605, ND10S ATH 606, ND10S ATH 612, ND10S ATH 613, ND10S ATH 619, ND10S ATH 625, ND10S ATH 643E
