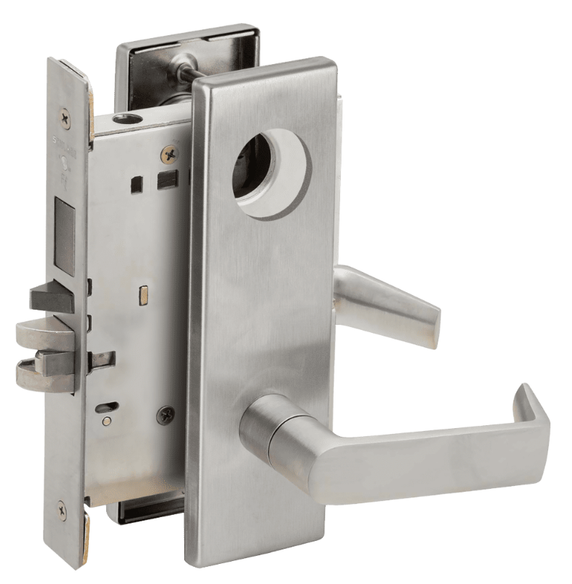

Schlage L9480L 06N Storeroom Mortise Lock w/ Deadbolt, 06 Lever and N Escutcheon, Less conventional cylinder
Function: Storeroom lock with deadbolt
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Outside lever always fixed; latchbolt retracted by inside lever
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• Key outside retracts deadbolt and latchbolt, however, outside lever remains locked
• Rotating inside lever retracts both deadbolt and latchbolt
• Inside lever always free for immediate egress
Lever Style: 06 Lever w/ N Escutcheon
Case material: CRS with zinc dichromate plating
Case size: L9000 Series: 4 -7/16" x 6 1/16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder: 3-7/8" (98 mm); knob or lever to thumbturn hub: 2-11/16" (68 mm)
Door thickness: Standard: 1-3/4" (44 mm) Optional: 1-3/8" (35 mm) to 2-1/2" (64 mm)
Handing: L9000 Series: Field-reversible without disassembly
N Escutcheon: 7-7/8" x 2-1/2" x 7/16" (200 mm x 64 mm x 11 mm); heavy wrought reinforced brass, bronze and stainless steel
Finishes: 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
Backset: 2-3/4" (70 mm) only
Armor: L9000 Series Standard: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)
Bolt: 1" (25 mm) throw stainless steel deadbolt
Strike: L9000 Series Standard: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 1-3/16"(30 mm) lip to center with dust box
Accessibility and life safety
Accessibility: All Schlage L Series levers comply with the Americans with Disabilities Act (ADA), which requires that “Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate
operable parts shall be 5 pounds (22.2 N) maximum.”
Life safety: The Schlage L Series is UL listed for use on 3-hour firedoors (except L9076 and L9077).
All levers with returns comply with the California Statefire code for return to within 1⁄2" of the door face
Warranty: 3 year limited mechanical
Certifications:
ANSI/BHMA: ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security With FSIC interchangeable core cylinders: Grade 2 Security With SFIC interchangeable core cylinders: Grade 3 Security ASTM F476-76 Grade 40 L400: ANSI/BHMA A156.36 Grade 1
UL/cUL: UL 10C and CAN/ULC-S104 3-hour Fire Listed All locks listed for A label single doors, 4' x 10' and pairs 8' x 10' Letter F and UL symbol on latch front indicate listing Electrified functions are UL/ULC Listed for single-point locking applications UL 437 Listed when using UL 437 cylinder UL Listed for 3-hour fire door (except L9076 and L9077) CA Fire Code: All levers with a return to door of 1⁄2" (64 mm) or less comply (Formerly Title 19, California State Fire Marshal Standard) FL Building Code: Miami-Dade NOA's and Florida Building Commission Listing
Model: Schlage L9480L 06N 626, L9480L 06N 605, L9480L 06N 606, L9480L 06N 612, L9480L 06N 613, L9480L 06N 619, L9480L 06N 625, L9480L 06N 630
