Schlage L9457 06A IS-OCC Classroom Security w/ Deadbolt Mortise Lock, Interior Vacant/Occupied Indicator
In Stock
$851.58
Price:
$1,577.00
Instant Savings
$725.42
Schlage L9457 06A IS-OCC Classroom Security with Deadbolt Mortise Lock w/ VACANT/OCCUPIED Indicator for Inside of Door, 06 Lever and A Rose

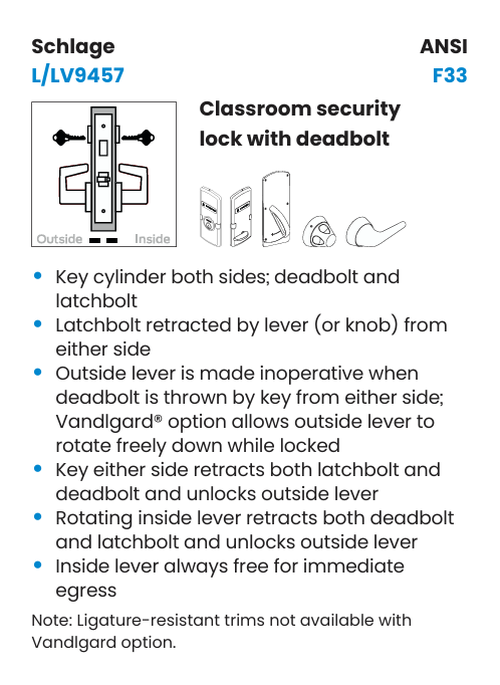

Function: Classroom security lock with deadbolt - ANSI F33
• Key cylinder both sides; deadbolt and latchbolt
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key either side retracts both latchbolt and deadbolt and unlocks outside lever
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
Function: Classroom security lock with deadbolt - ANSI F33
• Key cylinder both sides; deadbolt and latchbolt
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
• Key either side retracts both latchbolt and deadbolt and unlocks outside lever
• Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
• Inside lever always free for immediate egress
IS-OCC - VACANT/OCCUPIED Indicator for Inside of Door
Indicators
The 180-degree visibility indicator offers unparalleled visibility and flexibility. The unique features of the indicator make it ideally suited for classroom security applications as well as traditional occupied/vacant applications.
• 2" x 1⁄2" display for easy viewing at a distance
• 180° side windows for visibility at any angle
• High placement for quick assessment
• High contrast colors for ease of reading
• Available for over 30 functions, inside or outside of door (see Functions section)
• Retrofit kit allows indicator upgrades to already installed L Series mortise locks
• Indicator text available in English or French
Case material: CRS with zinc dichromate plating
The 180-degree visibility indicator offers unparalleled visibility and flexibility. The unique features of the indicator make it ideally suited for classroom security applications as well as traditional occupied/vacant applications.
• 2" x 1⁄2" display for easy viewing at a distance
• 180° side windows for visibility at any angle
• High placement for quick assessment
• High contrast colors for ease of reading
• Available for over 30 functions, inside or outside of door (see Functions section)
• Retrofit kit allows indicator upgrades to already installed L Series mortise locks
• Indicator text available in English or French
Case material: CRS with zinc dichromate plating
Case size: L9000 Series: 4 7⁄16" x 6 1 ⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11⁄16" (68 mm)
Door thickness: Standard: 1 3⁄4" (44 mm) Optional: 1 3⁄8" (35 mm) to 2 1⁄2" (64 mm) Over 2 1⁄2" (64 mm) door ranges vary by function. Specify door thickness if other than 1 3⁄4" and position in door EE, EI, EO, ED
Handing: L9000 Series: Field-reversible without disassembly
Roses: A ,B ,C: wrought brass or bronze and stainless steel; AVA and MER: forged brass
Finishes: 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
Finishes: 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
Backset: 2 3⁄4" (70 mm) only
Armor: L9000 Series Standard: 1 1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm)
Bolt: 1" (25 mm) throw stainless steel deadbolt
Strike: L9000 Series Standard: ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16"(30 mm) lip to center with dust box Optional: Extended lip strike options(7⁄8", 1", 1 1⁄2", 1 3⁄4", 2")
Accessibility and life safety
Accessibility: All Schlage L Series levers comply with the Americans with Disabilities Act (ADA), which requires that “Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate
operable parts shall be 5 pounds (22.2 N) maximum.”
Life safety: The Schlage L Series is UL listed for use on 3-hour firedoors (except L9076 and L9077).
All levers with returns comply with the California Statefire code for return to within 1⁄2" of the door face
Warranty: 3 year limited mechanical
Certifications:
ANSI/BHMA: ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security With FSIC interchangeable core cylinders: Grade 2 Security With SFIC interchangeable core cylinders: Grade 3 Security ASTM F476-76 Grade 40 L400: ANSI/BHMA A156.36 Grade 1
UL/cUL: UL 10C and CAN/ULC-S104 3-hour Fire Listed All locks listed for A label single doors, 4' x 10' and pairs 8' x 10' Letter F and UL symbol on latch front indicate listing Electrified functions are UL/ULC Listed for single-point locking applications UL 437 Listed when using UL 437 cylinder UL Listed for 3-hour fire door (except L9076 and L9077) CA Fire Code: All levers with a return to door of 1⁄2" (64 mm) or less comply (Formerly Title 19, California State Fire Marshal Standard) FL Building Code: Miami-Dade NOA's and Florida Building Commission Listing
Indicator model: L283-414
Model: Schlage L9457P 06A 626 IS-OCC, L9457P 06A 605 IS-OCC, L9457P 06A 606 IS-OCC, L9457P 06A 625 IS-OCC, L9457P 06A 630 IS-OCC, L9457J 06A 626 IS-OCC, L9457J 06A 605 IS-OCC, L9457J 06A 606 IS-OCC, L9457J 06A 625 IS-OCC, L9457J 06A 630 IS-OCC, L9457B 06A 626 IS-OCC, L9457B 06A 605 IS-OCC, L9457B 06A 606 IS-OCC, L9457B 06A 625 IS-OCC, L9457B 06A 630 IS-OCC, L9457L 06A 626 IS-OCC, L9457L 06A 605 IS-OCC, L9457L 06A 606 IS-OCC, L9457L 06A 625 IS-OCC, L9457L 06A 630 IS-OCC
