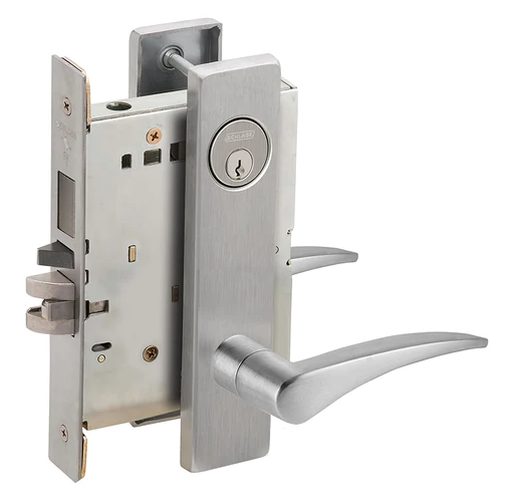

Schlage L9453P 12L Entrance Mortise Lock w/ 12 Lever and L Escutcheon
In Stock
$719.82
Price:
$1,333.00
Instant Savings
$613.18
Schlage L9453P 12L Grade 1 Entrance Mortise Lock w/ 12 Lever and L Escutcheon, Conventional Cylinder
Function: Entrance lock - ANSI F20
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside; rotating thumbturn 20° locks outside lever only; rotating thumbturn 90° also throws deadbolt; Vandlgard® option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and latchbolt, however, outside lever remains locked
• Rotating inside lever retracts deadbolt and latchbolt; outside lever unlocked when thumbturn is returned to vertical position
• Inside lever always free for immediate egress
Function: Entrance lock - ANSI F20
• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Latchbolt retracted by lever from either side
• Outside lever is made inoperative when deadbolt is thrown by key outside; rotating thumbturn 20° locks outside lever only; rotating thumbturn 90° also throws deadbolt; Vandlgard® option allows outside lever to rotate freely down while locked
• Key outside retracts deadbolt and latchbolt, however, outside lever remains locked
• Rotating inside lever retracts deadbolt and latchbolt; outside lever unlocked when thumbturn is returned to vertical position
• Inside lever always free for immediate egress
Caution: Egress without fully rotating the thumbturn to vertical position can result in lock-out situations.
Cylinder: P - 6-Pin Mortise Conventional Cylinder
Case material: CRS with zinc dichromate plating
Case size: L9000 Series: 4 7⁄16" x 6 1 ⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11⁄16" (68 mm)
Door thickness: Standard: 1 3⁄4" (44 mm) Optional: 1 3⁄8" (35 mm) to 2 1⁄2" (64 mm) Over 2 1⁄2" (64 mm) door ranges vary by function. Specify door thickness if other than 1 3⁄4" and position in door EE, EI, EO, ED
Handing: L9000 Series: Field-reversible without disassembly
Lever Style: 12L - 12 Lever w/ L Escutcheon
Escutcheon: L - 7 15⁄16” x 1 3⁄4” x 7⁄16” (202 mm x 44 mm x 11 mm); cold-forged brass or bronze and stainless steel
Finishes: 605, 606, 612, 613, 625, 626, 630
Backset: 2 3⁄4" (70 mm) only
Armor: L9000 Series Standard: 1 1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm)
Bolt: 1" (25 mm) throw stainless steel deadbolt
Strike: L9000 Series Standard: ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16"(30 mm) lip to center with dust box Optional: Extended lip strike options(7⁄8", 1", 1 1⁄2", 1 3⁄4", 2")
Armor: L9000 Series Standard: 1 1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm)
Bolt: 1" (25 mm) throw stainless steel deadbolt
Strike: L9000 Series Standard: ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16"(30 mm) lip to center with dust box Optional: Extended lip strike options(7⁄8", 1", 1 1⁄2", 1 3⁄4", 2")
Accessibility and life safety
Accessibility: All Schlage L Series levers comply with the Americans with Disabilities Act (ADA), which requires that “Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate
operable parts shall be 5 pounds (22.2 N) maximum.”
Life safety: The Schlage L Series is UL listed for use on 3-hour firedoors (except L9076 and L9077).
All levers with returns comply with the California Statefire code for return to within 1⁄2" of the door face
Warranty: 3 year limited mechanical
Accessibility: All Schlage L Series levers comply with the Americans with Disabilities Act (ADA), which requires that “Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate
operable parts shall be 5 pounds (22.2 N) maximum.”
Life safety: The Schlage L Series is UL listed for use on 3-hour firedoors (except L9076 and L9077).
All levers with returns comply with the California Statefire code for return to within 1⁄2" of the door face
Warranty: 3 year limited mechanical
Certifications:
ANSI/BHMA: ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security With FSIC interchangeable core cylinders: Grade 2 Security With SFIC interchangeable core cylinders: Grade 3 Security ASTM F476-76 Grade 40 L400: ANSI/BHMA A156.36 Grade 1
UL/cUL: UL 10C and CAN/ULC-S104 3-hour Fire Listed All locks listed for A label single doors, 4' x 10' and pairs 8' x 10' Letter F and UL symbol on latch front indicate listing Electrified functions are UL/ULC Listed for single-point locking applications UL 437 Listed when using UL 437 cylinder UL Listed for 3-hour fire door (except L9076 and L9077) CA Fire Code: All levers with a return to door of 1⁄2" (64 mm) or less comply (Formerly Title 19, California State Fire Marshal Standard) FL Building Code: Miami-Dade NOA's and Florida Building Commission Listing
Model: Schlage L9453P 12L 626, L9453P 12L 605, L9453P 12L 606, L9453P 12L 612, L9453P 12L 613, L9453P 12L 619, L9453P 12L 625, L9453P 02L 630
