Schlage L9091EU 03N Electrified Mortise Lock, Fail Secure, No Cylinder Override
In Stock
$896.94
Price:
$1,661.00
Instant Savings
$764.06
Schlage L9091EU 03N Electrified Mortise Lock, Fail Secure, Both Levers EU, No Cylinder Override, 12/24VDC
Function: 9091EU - Electrically locking/unlocking both levers, no cylinder - Fail Secure
• Levers (or knobs) only both sides; latchbolt and deadlocking auxiliary latch
Function: 9091EU - Electrically locking/unlocking both levers, no cylinder - Fail Secure
• Levers (or knobs) only both sides; latchbolt and deadlocking auxiliary latch
• Powered state: both levers continuously unlocked (EU mode)
• When power is removed (or power fails): both levers are locked.
Note: Auto detects 12 or 24V DC.
Electrical requirements
The L Series electrified locks are powered by DC power only. Do not use AC power. In addition to Allegion Connect connector,
an extended-length molex-to-traditional terminal wiring harness is shipped with every lock.
The L Series electrified locks are powered by DC power only. Do not use AC power. In addition to Allegion Connect connector,
an extended-length molex-to-traditional terminal wiring harness is shipped with every lock.
• Voltage: 12V or 24V DC (maximum 26.4 V, minimum 10.8 V)
• Peak current: 0.4 amps
• Holding current: 0.01 amps
• Operating temperature: -32°F to 120°F (-0°C to 49°C)
• Maximum relative humidity: 93%
• Peak current: 0.4 amps
• Holding current: 0.01 amps
• Operating temperature: -32°F to 120°F (-0°C to 49°C)
• Maximum relative humidity: 93%
Available options:
Request to Exit (RX): Request to exit (RX) switch monitors the inside lever with enhanced detection level that balances
security with lever sensitivity. Modular RX design – RX can be added on at a later time without opening the lock case.
Request to Exit (RX): Request to exit (RX) switch monitors the inside lever with enhanced detection level that balances
security with lever sensitivity. Modular RX design – RX can be added on at a later time without opening the lock case.
Case material: CRS with zinc dichromate plating
Case size: L9000 Series: 4 7⁄16" x 6 1 ⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11⁄16" (68 mm)
Door thickness: Standard: 1 3⁄4" (44 mm) Optional: 1 3⁄8" (35 mm) to 2 1⁄2" (64 mm) Over 2 1⁄2" (64 mm) door ranges vary by function. Specify door thickness if other than 1 3⁄4" and position in door EE, EI, EO, ED
Handing: L9000 Series: Field-reversible without disassembly

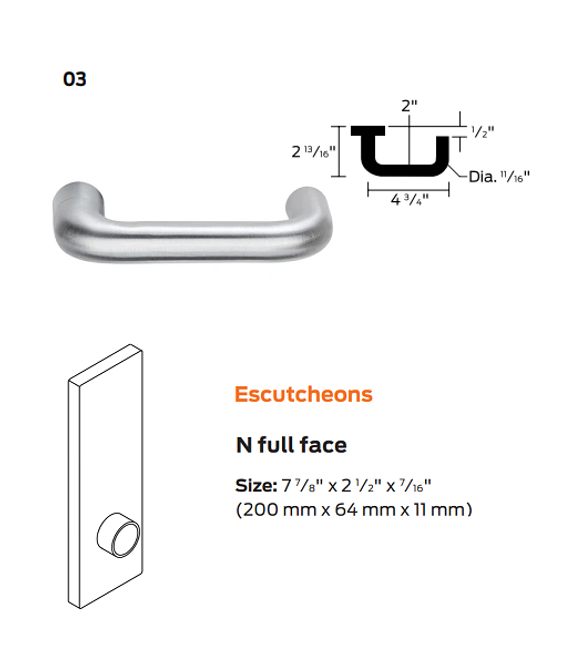

N Escutcheon Size: 7 7⁄8” x 2 1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); heavy wrought reinforced brass, bronze and stainless steel
Finishes: 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
Backset: 2 3⁄4" (70 mm) only
Armor: L9000 Series Standard: 1 1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm)
Bolt: 1" (25 mm) throw stainless steel deadbolt
Strike: L9000 Series Standard: ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16"(30 mm) lip to center with dust box Optional: Extended lip strike options(7⁄8", 1", 1 1⁄2", 1 3⁄4", 2")
Warranty: 3 year limited mechanical
Accessibility and Life Safety
Accessibility: All Schlage L Series levers comply with the Americans with Disabilities Act (ADA), which requires that “Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate operable parts shall be 5 pounds (22.2 N) maximum.”
Life safety: The Schlage L Series is UL listed for use on 3-hour firedoors (except L9076 and L9077).
All levers with returns comply with the California Statefire code for return to within 1⁄2" of the door face
Bullet resistant locks: The L9453P lock has been approved as a UL Listed Bullet Resistant Device (Levels 1, 2, and 3) when
installed with other rated products to create a bullet resistant assembly
Certifications:
ANSI/BHMA: ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security
With FSIC interchangeable core cylinders: Grade 2 Security
With SFIC interchangeable core cylinders: Grade 3 Security
ASTM F476-76 Grade 40 L400: ANSI/BHMA A156.36 Grade 1
UL/cUL: UL 10C and CAN/ULC-S104 3-hour Fire Listed All locks listed for A label single doors, 4' x 10' and pairs 8' x 10'
Letter F and UL symbol on latch front indicate listing Electrified functions are UL/ULC Listed for single-point locking applications UL 437 Listed when using UL 437 cylinder UL Listed for 3-hour fire door (except L9076 and L9077)
CA Fire Code: All levers with a return to door of 1⁄2" (64 mm) or less comply (Formerly Title 19, California State Fire Marshal Standard)
FL Building Code: Miami-Dade NOA's and Florida Building Commission Listings
Model: Schlage L9091EU 03N 626, L9091EU 03N 605, L9091EU 03N 606, L9091EU 03N 612, L9091EU 03N 613, L9091EU 03N 625, L9091EU 03N 630
