Schlage L9070J 12A Classroom Mortise Lock, Accepts Large Format IC Core (LFIC)
In Stock
$681.48
Price:
$1,262.00
Instant Savings
$580.52

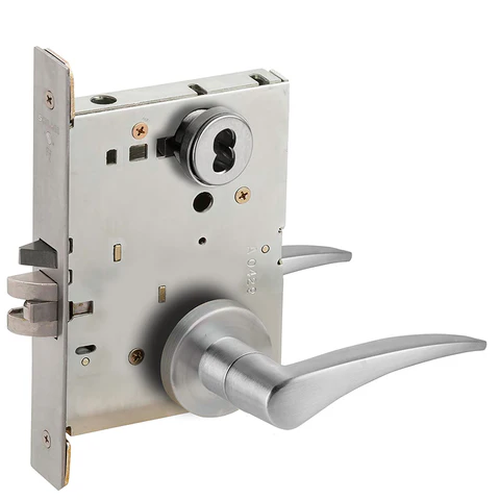

Schlage L9070J 12A Classroom Mortise Lock, w/ 12 Lever and A Rose, Accepts Large Format IC Core (LFIC)

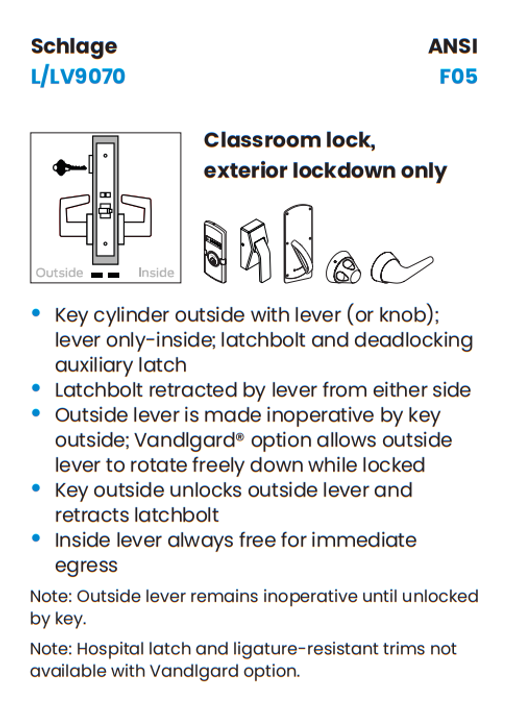

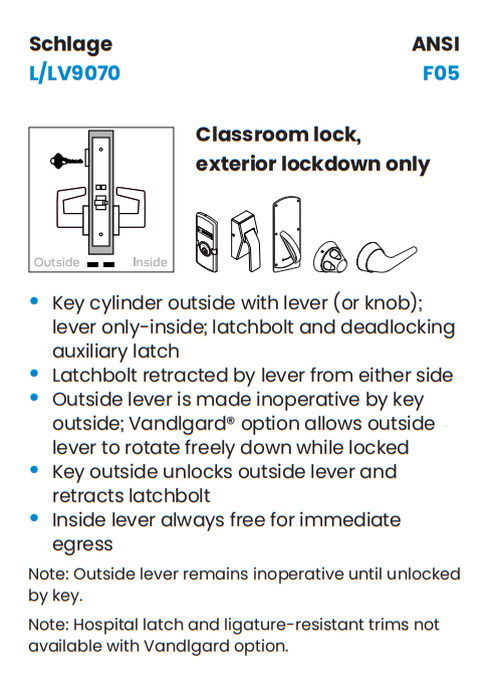

Function: Classroom lock - ANSI F05
• Latchbolt retracted by lever/ knob from either side unless outside lever is locked by key
• Unlocked from outside by key
• Auxiliary latch deadlocks latchbolt when door is closed
• Inside lever always free for immediate egress
• Latchbolt retracted by lever/ knob from either side unless outside lever is locked by key
• Unlocked from outside by key
• Auxiliary latch deadlocks latchbolt when door is closed
• Inside lever always free for immediate egress
Case material: CRS with zinc dichromate plating
Case size: L9000 Series: 4 7⁄16" x 6 1 ⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11⁄16" (68 mm)
Door thickness: Standard: 1 3⁄4" (44 mm) Optional: 1 3⁄8" (35 mm) to 2 1⁄2" (64 mm) Over 2 1⁄2" (64 mm) door ranges vary by function. Specify door thickness if other than 1 3⁄4" and position in door EE, EI, EO, ED
Handing: L9000 Series: Field-reversible without disassembly
Levers/knobs: 33 lever designs (see page 12-15): Forged brass or bronze and cast stainless steel Two knob designs (see page 15): Heavy-duty wrought brass, bronze or stainless steel Ligature resistant lever (SL1) and knob (SK1) HL6 hospital latch (available on 9010 and 9040 functions only) Tactile warning applied to outside lever; available o 01, 02, 03, 05, 06, 07, 12, 17, 18, M51, M52, M81, ME1, ME2, ME3
lever designs Roses/escutcheons: L escutcheons: 7 15⁄16” x 1 3⁄4” x 7⁄16” (202 mm x 44 mm x 11 mm); cold-forged brass or bronze and stainless steel
N escutcheons: 7 7⁄8” x 2 1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); heavy wrought reinforced brass, bronze and stainless steel
Roses: A ,B ,C: wrought brass or bronze and stainless steel; AVA and MER: forged brass
Finishes: 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
Backset: 2 3⁄4" (70 mm) only
Armor: L9000 Series Standard: 1 1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm)
Bolt: 1" (25 mm) throw stainless steel deadbolt
Strike: L9000 Series Standard: ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16"(30 mm) lip to center with dust box Optional: Extended lip strike options(7⁄8", 1", 1 1⁄2", 1 3⁄4", 2")
Warranty: 3 year limited mechanical
Accessibility and life safety:
Accessibility: All Schlage L Series levers comply with the Americans with Disabilities Act (ADA), which requires that “Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate
operable parts shall be 5 pounds (22.2 N) maximum.”
Life safety: The Schlage L Series is UL listed for use on 3-hour firedoors (except L9076 and L9077).
All levers with returns comply with the California Statefire code for return to within 1⁄2" of the door face
Bullet resistant locks: The L9453P lock has been approved as a UL Listed Bullet Resistant Device (Levels 1, 2, and 3) when
installed with other rated products to create a bullet resistant assembly
Certifications:
ANSI/BHMA: ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security
With FSIC interchangeable core cylinders: Grade 2 Security
With SFIC interchangeable core cylinders: Grade 3 Security
ASTM F476-76 Grade 40 L400: ANSI/BHMA A156.36 Grade 1
UL/cUL: UL 10C and CAN/ULC-S104 3-hour Fire Listed All locks listed for A label single doors, 4' x 10' and pairs 8' x 10'
Letter F and UL symbol on latch front indicate listing Electrified functions are UL/ULC Listed for single-point locking applications UL 437 Listed when using UL 437 cylinder UL Listed for 3-hour fire door (except L9076 and L9077)
CA Fire Code: All levers with a return to door of 1⁄2" (64 mm) or less comply (Formerly Title 19, California State Fire Marshal Standard)
FL Building Code: Miami-Dade NOA's and Florida Building Commission Listings
Model: Schlage L9070J 12A 626, L9070J 12A 605, L9070J 12A 606, L9070J 12A 612, L9070J 12A 613, L9070J 12A 619, L9070J 12A 625, L9070J 12A 630
