Schlage L464B Cylinder Only Small Case Mortise Deadbolt, Accepts Small Format IC Core (SFIC)

Schlage L464B Grade 1 Small Case Mortise Deadbolt, Single Cylinder Outside, Blank Inside, Accepts Small Format IC Core (SFIC)

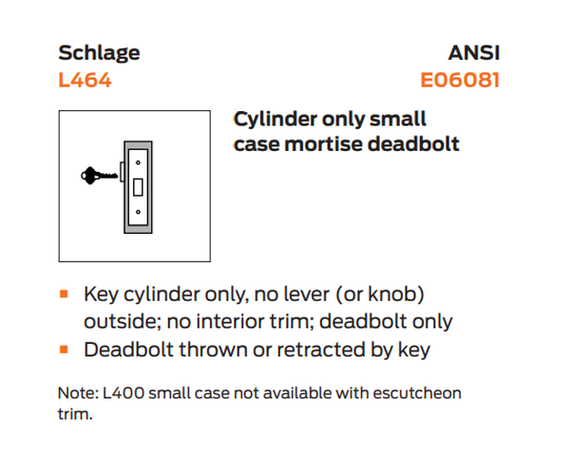

Function: Cylinder only small case - ANSI E06081
• Key cylinder only, no lever (or knob) outside; no interior trim; deadbolt only
• Deadbolt thrown or retracted by key
Note: L400 small case not available with escutcheon trim.

Features
Case Material: CRS with zinc dichromate plating

Cylinder: B - Less small format interchangeable core (SFIC) - no core included

Case Size: 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm)

Door Thickness: 1-3/4" (44 mm) (standard)

Handing: Non-handed

Finishes: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e

Armor: 1-1/4" x 5-9/16" x 7/32" (32 mm x 141 mm x 6 mm)

Bolt: 1" (25 mm) throw stainless steel deadbolt. 3/4" (19 mm) throw stainless steel latch with anti-friction tongue

Strike: 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box (standard)

Certification/Compliance
ANSI/BHMA: ANSI/BHMA A156.36 Grade 1

UL/cUL: UL 10C and CAN/ULC-S104 3-hour Fire Listed
All locks listed for A label single doors, 4' x 10' and pairs 8' x 10'
Letter F and UL symbol on latch front indicate listing
Electrified functions are UL/ULC Listed for single-point locking applications
UL 437 Listed when using UL 437 cylinder
UL Listed for 3-hour fire door (except L9076 and L9077)

Model: Schlage L464B 626, L464B 605, L464B 606, L464B 612, L464B 613, L464B 619, L464B 625, L464B 630
