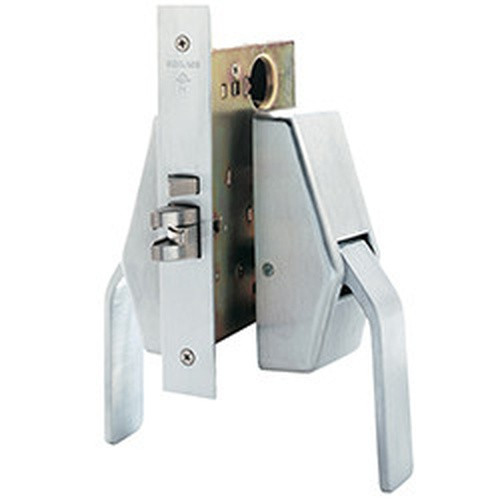

Schlage HL6-9070 Hospital Push/Pull Mortise Latch, Classroom Function

Hospital Push/Pull Tubular Latch, Passage Function, 2 3⁄4"Backset, Spring Latch (Unguarded).

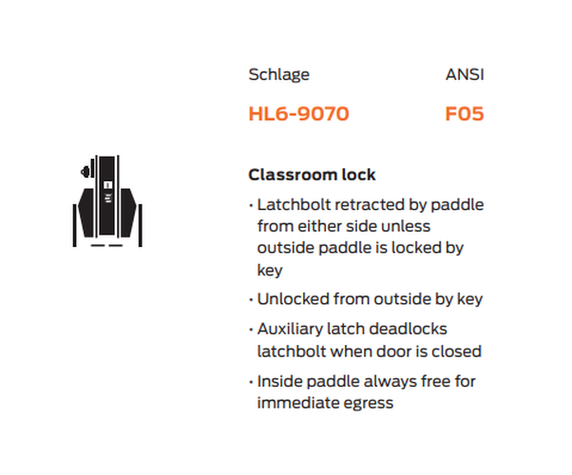

Function: HL6 9070- Classroom lock - Ansi No: F05
• Latchbolt retracted by paddle from either side unless outside paddle is locked by key
• Unlocked from outside by key
• Auxiliary latch deadlocks latchbolt when door is closed
• Inside paddle always free for immediate egress

Mounting positions:
· Handles down
· Handles up
· One handle up, one handle down (push or pull)
· Handles point away from latch

Backset: Standard: 2 3⁄4" only

Strike Standard: ASA: 4 7⁄8"

Handing: Non-handed

Door thickness: 1 3⁄4" only

Latchbolt: 3⁄4" throw stainless steel

Certifications: UL Listed for 3-hour fire door, 4' x 10'

Finish: 626 Satin chrome (US26D), 613 Oil rubbed bronze (US10B), 630 Satin stainless steel (US32D)
