Schlage Electronics M490G Gate Electromagnetic Lock, 1500 lbs. Holding Force

Schlage Electronics M490G Gate Electromagnetic Lock, 1500 lbs. Holding Force, MBS/DSM

The Schlage M490G is an ANSI/BHMA outdoor certified electromagnetic lock designed for exterior sliding and swinging gates. Heavy-duty plating assures a low maintenance device that accommodates misalignment problems while supplying superior hold force. A modified top jamb mounting bracket allows the M490G mag lock to mount to any gate frame or post in various positions. The M490G can be field configured for either 12 or 24 VDC operation. The magnetic bond sensor (MBS) and gate status monitor (DPS) are both standard.

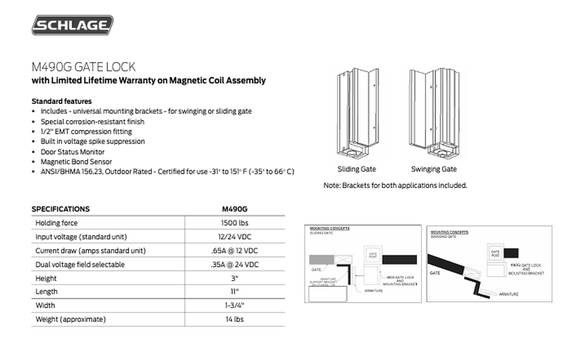

Specifications
Holding force: Meets or exceeds BHMA standard of 1500 lbs

Input voltage (auto selected): 12/24 VDC

Current draw: .65A @ 12 VDC - .35A @ 24 VDC

Height: 3"

Length: 11"

Depth: 1-3/4"

Certifications: ANSI/BHMA 156.23 Outdoor rated

Temperature: -31° to 151° F (-35° to 66° C)

Wire gauge: 14-22 AWG

M490G
• Magnetic Bond Sensor (MBS) monitors the strength of the bond between the lock and armature so you know the door is secure
• Door Position Switch (DPS) monitors whether the door is open or closed
• Universal Mounting Brackets for swinging or sliding gate applications
• Built-in voltage spike suppression
• 1/2” EMT compression fitting
• Special corrosion resistant plating

Model: Schlage Electronics M490G
