Schlage Electronics GF3000TJ Surface Mounted Shear Lock, Top Jamb, 3000 lbs. Holding Force

Schlage Electronics GF3000TJ Surface Mounted Shear Lock, 3000 lbs. HoldIng Force, Top Jamb

The Schlage GF3000 Series electromagnetic shear locks combine superior hold force with advanced microprocessor controlled electronic features including auto sensed voltage, auto relocking, adjustable relock time delay and options for integrating into an access control system.  The surface mounted model provides powerful hold force in a low profile design.

Specifications
Holding force: 3000 lbs

Door type: Inswinging

Current draw: .90A @ 12 VDC - .45A @ 24 VDC

Lock housing (L x H x D): 9-13/16" x 1-1/4" x 1-1/2"

Armature housing (L x H x D):  8-3/8" x 1-3/8" x 1/2"

Certifications: UL 10C, cUL, CSFM, ANSI/BHMA 156.23

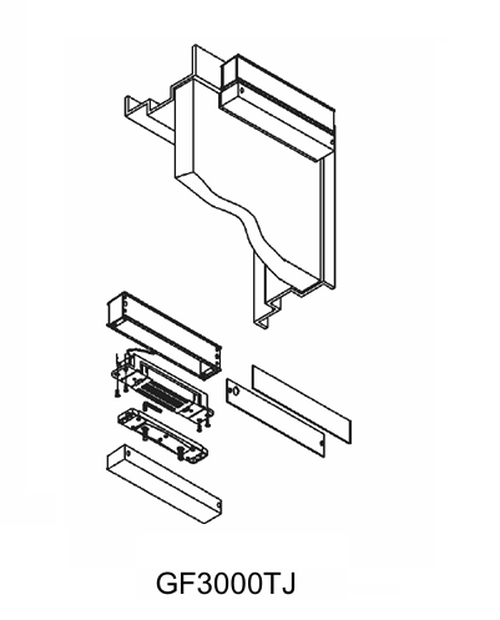

GF3000TJ (Top Jamb): Surface mounted shear lock intended for use on inswinging doors that are flush with frame’s inner face. Surface mounted armature assembly mounts onto top of door or top rail and surface mounted magnet mounts onto frame’s face. Air gap adjustment is from top of door.

Model: Schlage Electronics GF3000TJ
