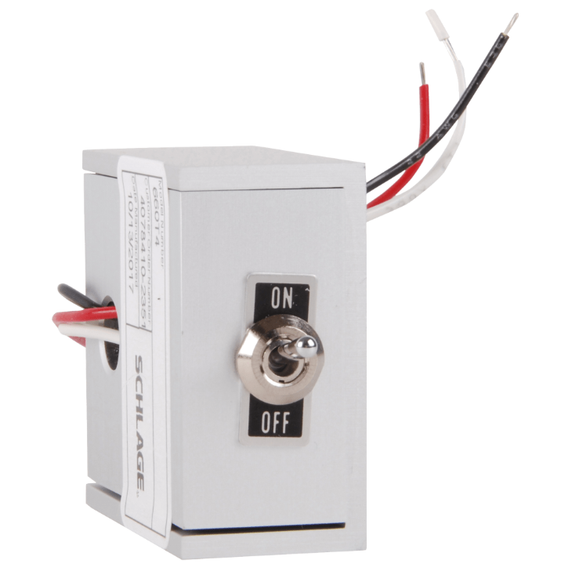

Schlage Electronics 660-T4 Station Control, SPDT Maintained Pushbutton

Schlage Electronics 660-T4 Station Control, SPDT Maintained Pushbutton

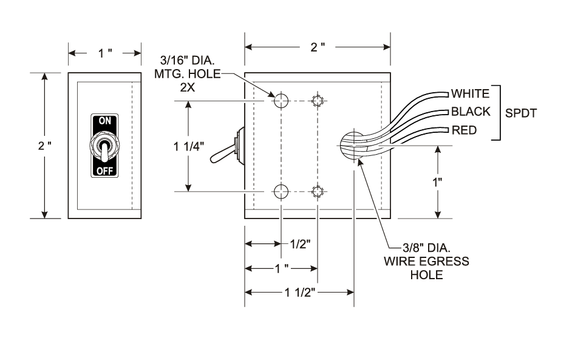

The 660 Series concealed remote button is designed for under the counter or concealed desk applications, and it is used to release an electric or electronic locking mechanism from a remote location. The 660 Series concealed remote button is mounted in a mini aluminum box, 2" x 2" x 1". The 660 is available with a momentary action pushbutton or maintained action toggle switch. Both can be surface mounted

Features
• Surface mount application
• Choice of maintained or momentary action
• Compact size
• Recommended for concealed desk application

Specifications
Switch contact rating: 6 amp @ 120 VAC

Relay Action: Maintained

Length: 2 inch

Width: 2 inch

Height: 1 inch

Model: Schlage Electronics 660-T4
