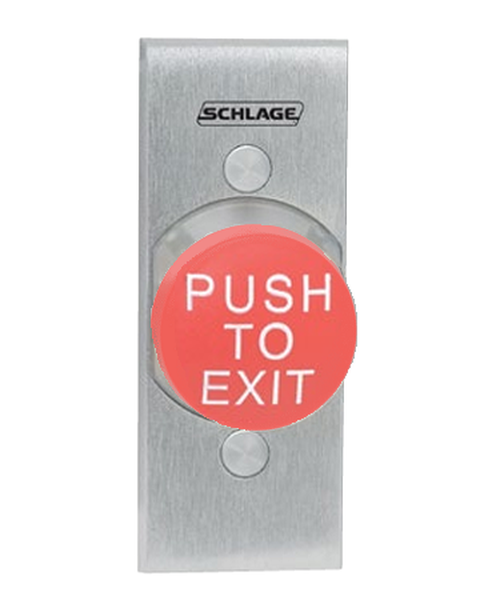

Schlage Electronics 623RD EX NS 1-5/8" Heavy Duty Mushroom Pushbutton, Narrow, Red, "PUSH TO EXIT"

Schlage Electronics 623RD EX NS 1-5/8" Mushroom Button, Single Gang, Red, Narrow Stile, "PUSH TO EXIT"

The 620 Series pushbuttons are easy to install and operate. Their standard and narrow stile plates offer ultimate flexibility. The 620 Series have multiple button configuration and finish options provide enhanced architectural appeal.

Schlage 620 Series pushbuttons also offer significant installer-friendly innovations such as screw terminal connections for the momentary action models and easy-to-install L2/ILL optional PC board. The 621/623 models offer glow-in-the-dark button options as well as backlit illumination for the cone with green, yellow and red LEDs. Additional options include maintained or delayed action, double pole double throw switches, narrow stile faceplates and heavy-duty faceplates with several architectural finishes.

Features
• 620 Series offered in 5 button colors
• “PUSH TO EXIT” message
• Momentary action is standard; factory orderable with delayed (0-60 second) or alternate action
• Double pole, double throw optional (not available with delayed action)
• Standard, heavy-duty single gang faceplate
• 1-5/8" mushroom
• 630 Satin Stainless Steel standard
• UL 294 Listed

Narrow stile faceplate size: 1-3/4" x 4-1/2"

Button Color: Red

Button Size: 1-5/8" mushroom button

Contact rating
3A @ 30 VDC for momentary
3A @ 30 VDC, form Z contacts for DA (delayed pneumatic action)

Model: Schlage Electronics 623RD EX NS, 623RD EX DA NS
