Schlage D70 PLY Classroom Cylindrical Lock, Plymouth Knob

Schlage D70 PLY Grade 1 Classroom Knob, Plymouth Knob

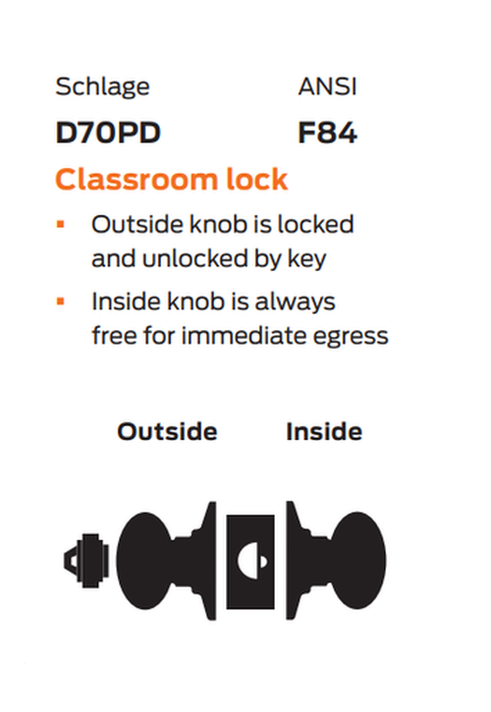

Function: Classroom lock - ANSI F84
• Outside knob is locked and unlocked by key
• Inside knob is always free for immediate egress

Specifications

Handing: Keyed functions are reversible.

Door thickness: 1 3⁄8" to 1 7⁄8" (35 mm to 48 mm) standard.

Backset: 2 3⁄4" (70 mm) standard. 2 3⁄8", 3 3⁄4" and 5" (60 mm, 95 mm, and 127 mm) optional.

Latch Type: Deadlatch

Faceplate: Brass, bronze or stainless steel. 1 1⁄8" x 2 1⁄4" (29 mm x 57 mm) square corner, beveled.

Lock chassis: Steel, zinc dichromate plated for corrosion resistance.

Latch bolt: Brass, 1⁄2" (12 mm) throw, deadlocking on keyed and exterior functions. 3⁄4" (19 mm) throw, anti-friction latch available for pairs of fire doors.

Exposed trim: Wrought brass, bronze or stainless steel.

Strike: ANSI curved lip strike 1/4" x 4 7⁄8" x 1 3⁄16" lip to center standard.

Cylinder and keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.

Keying options: Full size interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.

Warranty: Three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal: Meets FF-H-106C.

California state reference code: (Formerly Title 19, California State Fire Marshal Standard) All levers with a return to door of 1⁄2" (64mm) or less comply.

UL/cUL:
All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus XP 20-500 Series cylinder.

ADA compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

Model: Schlage D70PD PLY 626, D70PD PLY 605, D70PD PLY 606, D70PD PLY 612, D70PD PLY 613, D70PD PLY 609, D70PD PLY 625, D70LD PLY 626, D70LD PLY 605, D70LD PLY 606, D70LD PLY 612, D70LD PLY 613, D70LD PLY 609, D70LD PLY 625
