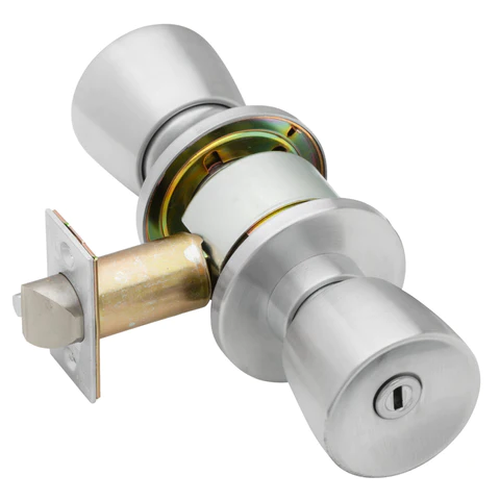

Schlage D40S TUL Privacy Cylindrical Lock, Tulip Knob

Schlage D40S TUL Grade 1 Privacy Knob, Tulip Knob

Function: Bath/bedroom privacy - ANSI F76
• Push-button locking
• Can be opened from outside with small screwdriver
• Turn the inside knob or close the door to release button
• Inside knob is always free for immediate egress

Specifications

Handing: Keyed functions are reversible.

Door thickness: 1 3⁄8" to 1 7⁄8" (35 mm to 48 mm) standard.

Backset: 2 3⁄4" (70 mm) standard. 2 3⁄8", 3 3⁄4" and 5" (60 mm, 95 mm, and 127 mm) optional.

Latch Type: Springlatch

Faceplate: Brass, bronze or stainless steel. 1 1⁄8" x 2 1⁄4" (29 mm x 57 mm) square corner, beveled.

Lock chassis: Steel, zinc dichromate plated for corrosion resistance.

Latch bolt: Brass, 1⁄2" (12 mm) throw, deadlocking on keyed and exterior functions. 3⁄4" (19 mm) throw, anti-friction latch available for pairs of fire doors.

Exposed trim: Wrought brass, bronze or stainless steel.

Strike: ANSI curved lip strike 1/4" x 4 7⁄8" x 1 3⁄16" lip to center standard.

Warranty: Three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal: Meets FF-H-106C.

California state reference code: (Formerly Title 19, California State Fire Marshal Standard) All levers with a return to door of 1⁄2" (64mm) or less comply.

UL/cUL:
All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus XP 20-500 Series cylinder.

ADA compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

Model: Schlage D40S TUL 626, D40S TUL 605, D40S TUL 606, D40S TUL 612, D40S TUL 613, D40S TUL 625
