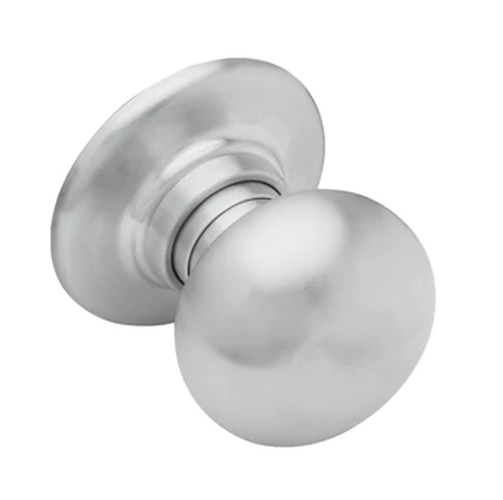

Schlage D170 PLY Single Dummy Cylindrical Lock, Plymouth Knob

Schlage D170 PLY Grade 1 Single Dummy Knob, Plymouth Knob

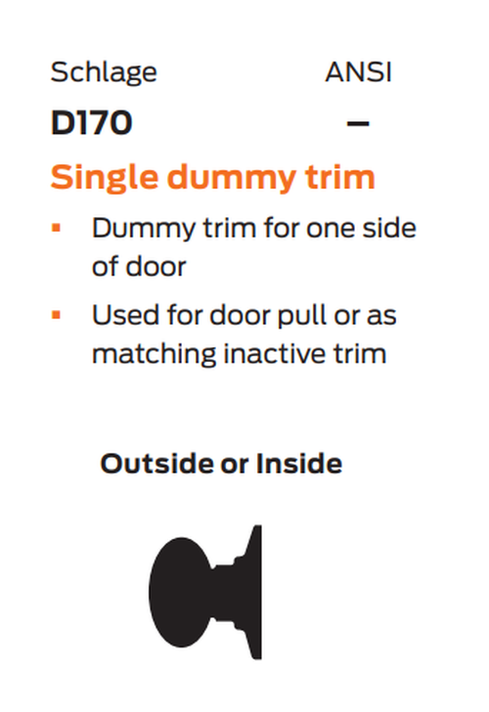

Function: Single dummy trim
• Dummy trim for one side of door
• Used for door pull or as matching inactive trim

Specifications

Handing: Keyed functions are reversible.

Door thickness: 1 3⁄8" to 1 7⁄8" (35 mm to 48 mm) standard.

Latch Type: Deadlatch

Faceplate: Brass, bronze or stainless steel. 1 1⁄8" x 2 1⁄4" (29 mm x 57 mm) square corner, beveled.

Lock chassis: Steel, zinc dichromate plated for corrosion resistance.

Latch bolt: Brass, 1⁄2" (12 mm) throw, deadlocking on keyed and exterior functions. 3⁄4" (19 mm) throw, anti-friction latch available for pairs of fire doors.

Exposed trim: Wrought brass, bronze or stainless steel.

Warranty: Three-year limited.

Certifications

ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal: Meets FF-H-106C.

California state reference code: (Formerly Title 19, California State Fire Marshal Standard) All levers with a return to door of 1⁄2" (64mm) or less comply.

UL/cUL:
All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus XP 20-500 Series cylinder.

ADA compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

Model: Schlage D170 PLY 626, D170 PLY 605, D170 PLY 606, D170 PLY 612, D170 PLY 613, D170 PLY 625, D170 PLY 643E
