Schlage B662 IS-LOC Double Cylinder Deadbolt w/ Interior "UNLOCKED/LOCKED" Indicator

Schlage B662 IS-LOC Grade 1 Double Cylinder Indicator Deadbolt, Keyed Outside/Keyed Inside, Inside Indicator "UNLOCKED/LOCKED"

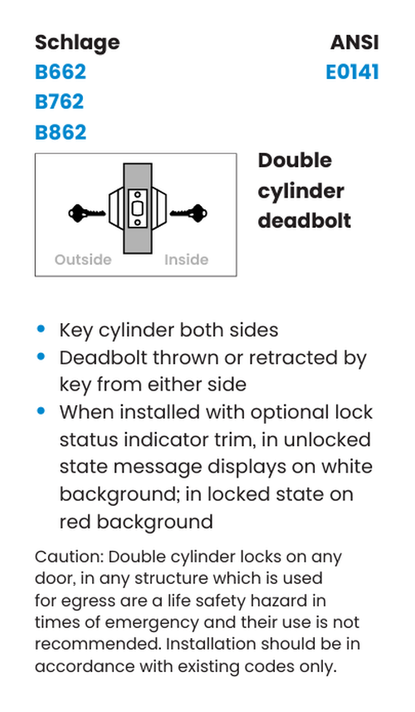

Function: Double cylinder deadbolt - ANSI E0141
• Key cylinder both sides
• Deadbolt thrown or retracted by key from either side
• When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background
Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

IS-LOC - UNLOCKED/LOCKED Indicator for Inside of Door

Specifications
Trim
Material: Solid zinc cylinder housing; 7/8" standoff, wrought brass or bronze trim ring over solid zinc spin ring.

Door thickness: 1-3/4” to 2” conventional cylinder; 1-5/8” to 2” FSIC; 1-3/4” to 2-1/2” SFIC; 1-3/8” to 2-1/2” door bolt only.

Deadbolt
Backset: Adjustable 2-3/8" or 2-3⁄4" fixed backset standard

Faceplate: 1-1/8" x 2-1⁄4", Square corner faceplate standard

Bolt: Solid, sintered steel bolt with hardened steel anti-saw pin insert; 1" housing diameter, 1" throw

Strike:  1-1/8" x 2-3/4", Square corner, metal dust box

Keying
Cylinder format: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats.

Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus security levels with available = master keying and construction keying.

Attachment: Three 3" screws anchor metal dustbox to frame. 1/4" machine screws through bolt to firmly anchor lock to door.

Warranty: 3-year limited mechanical warranty.

Certifications
ANSI A156.36, Grade 1. When installed with FSIC cylinder, Grade 2; SFIC cylinder, Grade 3.
UL/cUL All functions UL 10C listed for 3-hour fire door
BAA compliant, all functions
ADA compliant thumbturn

Model: Schlage B662P 626 IS-LOC, B662P 605 IS-LOC, B662P 619 IS-LOC, B662P 622 IS-LOC, B662P 613 IS-LOC, B662B 626 IS-LOC, B662B 605 IS-LOC, B662B 619 IS-LOC, B662B 622 IS-LOC, B662B 613 IS-LOC, B662J 626 IS-LOC, B662J 605 IS-LOC, B662J 619 IS-LOC, B662J 622 IS-LOC, B662J 613 OS-LOC
