Schlage B661 OS-OCC One-Way Deadbolt w/ Exterior "VACANT/OCCUPIED" Indicator

Schlage B661 OS-OCC Grade 1 One-Way Indicator Deadbolt, Key Cylinder Outside/Blank Plate, Outside Indicator "VACANT/OCCUPIED"

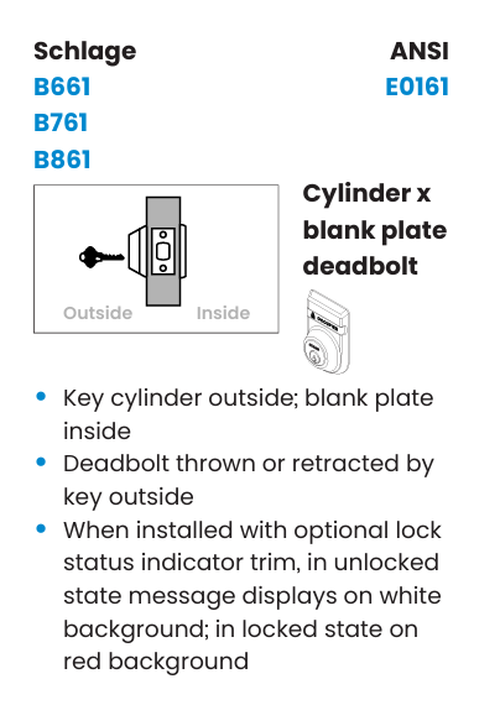

Function: Cylinder x blank plate deadbolt - ANSI E0161
• Key cylinder outside; blank plate inside
• Deadbolt thrown or retracted by key outside
• When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

OS-OCC - OCCUPIED/VACANT Indicator for Outside of Door

Specifications
Trim
Material: Solid zinc cylinder housing; 7/8" standoff, wrought brass or bronze trim ring over solid zinc spin ring.

Door thickness: 1-3/4” to 2” conventional cylinder; 1-5/8” to 2” FSIC; 1-3/4” to 2-1/2” SFIC; 1-3/8” to 2-1/2” door bolt only.

Deadbolt
Backset: Adjustable 2-3/8" or 2-3⁄4" fixed backset standard

Faceplate: 1-1/8" x 2-1⁄4", Square corner faceplate standard

Bolt: Solid, sintered steel bolt with hardened steel anti-saw pin insert; 1" housing diameter, 1" throw

Strike:  1-1/8" x 2-3/4", Square corner, metal dust box

Keying
Cylinder format: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats.

Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus security levels with available = master keying and construction keying.

Attachment: Three 3" screws anchor metal dustbox to frame. 1/4" machine screws through bolt to firmly anchor lock to door.

Warranty: 3-year limited mechanical warranty.

Certifications
ANSI A156.36, Grade 1. When installed with FSIC cylinder, Grade 2; SFIC cylinder, Grade 3.
UL/cUL All functions UL 10C listed for 3-hour fire door
BAA compliant, all functions
ADA compliant thumbturn

Model: Schlage B661P 626 OS-OCC, B661P 605 OS-OCC, B661P 619 OS-OCC, B661P 622 OS-OCC, B661P 613 OS-OCC, B661B 626 OS-OCC, B661B 605 OS-OCC, B661B 619 OS-OCC, B661B 622 OS-OCC, B661B 613 OS-OCC, B661J 626 OS-OCC, B661J 605 OS-OCC, B661J 619 OS-OCC, B661J 622 OS-OCC, B661J 613 OS-OCC
