Schlage B562 OS-OCC Double Cylinder Deadbolt w/ Exterior "VACANT/OCCUPIED" Indicator

Schlage B562 OS-OCC Grade 2 Double Cylinder Indicator Deadbolt, Key Cylinder Outside/Key Cylinder Inside, Outside Indicator "VACANT/OCCUPIED"

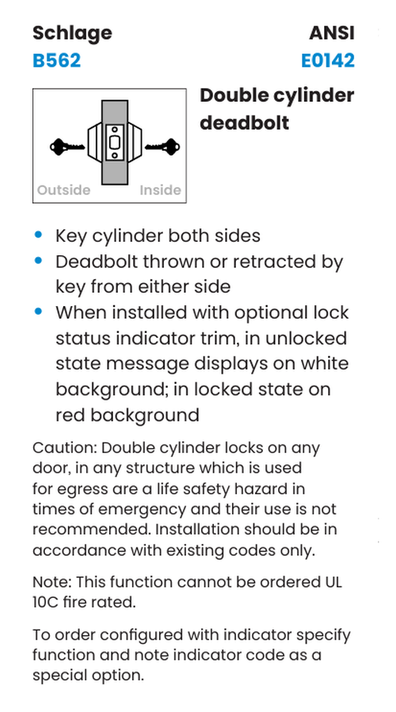

Function: Double cylinder deadbolt - ANSI E0142
• Key cylinder both sides
• Deadbolt thrown or retracted by key from either side
• When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background
Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Note: This function cannot be ordered UL10C fire rated

OS-OCC - OCCUPIED/VACANT Indicator for Outside of Door

Specifications
Trim
Material: Solid zinc cylinder housing; 1" standoff wrought brass or bronze trim ring over solid zinc spin ring.

Door thickness: Standard: 1-3/8" to 1-7/8" conventional cylinder or thumbturn only ; 1-5/8" to 2" interchangeable core cylinder.

Deadbolt
Backset: Adjustable for 2-3/8" or 2-3/4"

Faceplate: 1" x 2-1/4", Square corner faceplate standard.

Bolt: Solid zinc bolt with hardened steel anti-saw pin insert; 1" housing diameter, 1" throw.

Strike: 1-1/8" x 2-3/4", Square corner, metal box.

Keying
Cylinder format: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats.

Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus security levels with available = master keying and construction keying.

Attachment: Three 3" screws anchor metal dustbox to frame. 1⁄4" machine screws through bolt to firmly anchor lock to door.

Warranty: 3-year limited mechanical warranty.

Certifications
ANSI/BHMA ANSI A156.36, Grade 2. When installed with SFIC cylinder, Grade 3.
UL/cUL Available UL Listed for 3-hour fire door (except B562)
Federal BAA compliant, all functions.
Other ADA compliant thumbturn

Model: Schlage B562P 626 OS-OCC, B562P 605 OS-OCC, B562P 619 OS-OCC, B562P 622 OS-OCC, B562P 613 OS-OCC, B562B 626 OS-OCC, B562B 605 OS-OCC, B562B 619 OS-OCC, B562B 622 OS-OCC, B562B 613 OS-OCC, B562J 626 OS-OCC, B562J 605 OS-OCC, B562J 619 OS-OCC, B562J 622 OS-OCC, B562J 613 OS-OCC, B562L 626 OS-OCC, B562L 605 OS-OCC, B562L 619 OS-OCC, B562L 622 OS-OCC, B562L 613 OS-OCC
