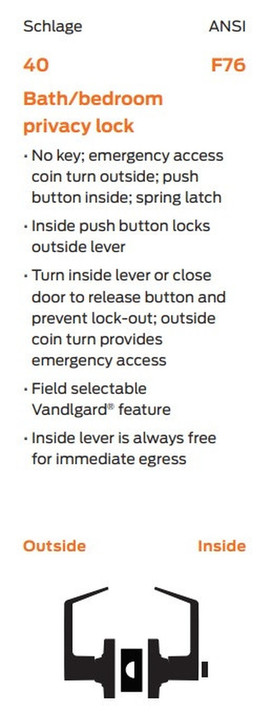

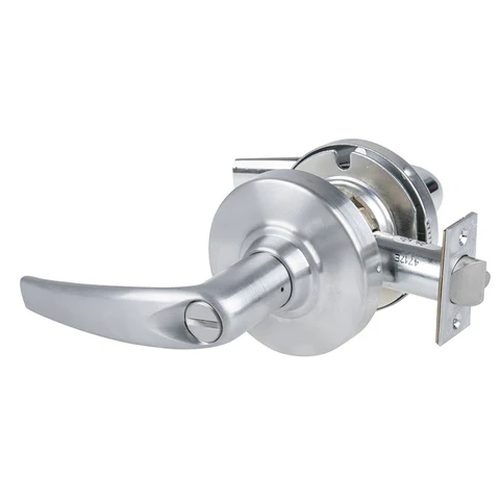

Schlage ALX40 ATH Grade 2 Bath/Bedroom Privacy Lever Lock

Schlage ALX40 ATH Grade 2 Bath/Bedroom Privacy Lever Lock

Chassis
Material: Zinc and steel, zinc dichromate plated for corrosion resistance
Door thickness: Standard: 1 3⁄8" to 1 3⁄4" + .012 to accommodate wrap

Trim
Handing: Non-Handed

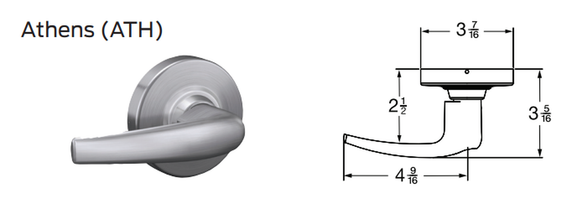

Levers: Standard: Athens (8AT);
Roses: Wrought brass, bronze or zinc plated to match finish specification
Standard: 3 7 ⁄16" diameter. Blank outside rose is 3 1⁄2" diameter
Finishes: 10 available: 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e

Latches
Backset: Standard: 2 3⁄4" Optional: 2 3⁄8", 3 3⁄4", 5"
Faceplate: Standard: 1 1⁄8" x 2 1⁄4" square corners
Optional: Multiple options with square or radius corners
Bolt: Standard: 7 ⁄8" bolt diameter, up to 1" housing diameter, 1 ⁄2" throw in Stainless Steel
Optional: 1" bolt diameter with 1⁄2" throw, 3⁄4" anti-friction fire latch
Strike: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T strike
Warranty: 10-year limited

Certifications
ANSI/BHMA: Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and
durability
ICC: Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities
UL/cUL: All locks listed for A label single fire door 4' x 8' for 3-hours. Upgrade options available to achieve
4' x 10' 3-hour; pair doors 8' x 8' 3-hour; and 8' x 10' 90-minute. Letter F and UL symbol on latch
front indicate listing.
UL 437: Optional UL listed high-security cylinders available in Conventional format
CA Fire Code: All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular)
FL Building Code: ASTM E1886 and E1996 impact and cycle/Miami-Dade equivalent TAS 201 and TAS 202.
ASTM E330 static load/Miami-Dade equivalent TAS 202.
Federal: Meets FF-H-106C Series 161
ADA: compliant All lever designs meet Americans with Disabilities Act requirements

Model: Schlage ALX40 ATH 626, ALX40 ATH 605, ALX40 ATH 606, ALX40 ATH 612, ALX40 ATH 613, ALX40 ATH 619, ALX40 ATH 622, ALX40 ATH 625, ALX40 ATH 626AM, ALX40 ATH 643E
