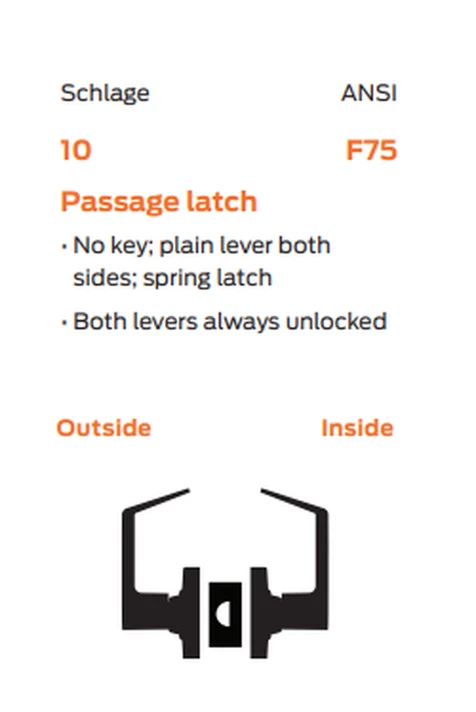

Schlage ALX10 LON Grade 2 Passage Lever Lock

Schlage ALX10 LON Grade 2 Passage Lever Lock

Chassis
Material: Zinc and steel, zinc dichromate plated for corrosion resistance
Door thickness: Standard: 1 3⁄8" to 1 3⁄4" + .012 to accommodate wrap

Trim
Handing: Non-Handed
Levers: Standard: Athens (8AT);
Roses: Wrought brass, bronze or zinc plated to match finish specification
Standard: 3 7 ⁄16" diameter. Blank outside rose is 3 1⁄2" diameter
Finishes: 10 available: 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e

Latches
Backset: Standard: 2 3⁄4" Optional: 2 3⁄8", 3 3⁄4", 5"
Faceplate: Standard: 1 1⁄8" x 2 1⁄4" square corners
Optional: Multiple options with square or radius corners
Bolt: Standard: 7 ⁄8" bolt diameter, up to 1" housing diameter, 1 ⁄2" throw in Stainless Steel
Optional: 1" bolt diameter with 1⁄2" throw, 3⁄4" anti-friction fire latch
Strike: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T strike
Warranty: 10-year limited

Certifications
ANSI/BHMA: Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and
durability
ICC: Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities
UL/cUL: All locks listed for A label single fire door 4' x 8' for 3-hours. Upgrade options available to achieve
4' x 10' 3-hour; pair doors 8' x 8' 3-hour; and 8' x 10' 90-minute. Letter F and UL symbol on latch
front indicate listing.
UL 437: Optional UL listed high-security cylinders available in Conventional format
CA Fire Code: All levers with a return to door of 1 ⁄2" (64 mm) or less comply
(Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular)
FL Building Code: ASTM E1886 and E1996 impact and cycle/Miami-Dade equivalent TAS 201 and TAS 202.
ASTM E330 static load/Miami-Dade equivalent TAS 202.
Federal: Meets FF-H-106C Series 161
ADA: compliant All lever designs meet Americans with Disabilities Act requirements

Model: Schlage ALX10 LON 626, ALX10 LON 612, ALX10 LON 622, ALX10 LON 619, ALX10 LON 643E
