Sargent V60-10XU66 VSLL 26D Privacy/Bathroom Cylindrical Lock w/ Outside Status Indicator

Sargent V60-10XU66 VSLL 26D Grade 1 Bathroom Cylindrical Lock, Non-Keyed, L Lever, VSL Rose, Outside Indicator with Icons White/Red, Satin Chrome Finish, Non-Handed

Function Description: Privacy/Bathroom - ANSI F76A
• Latch by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Emergency release tool (provided) in outside lever releases inside button

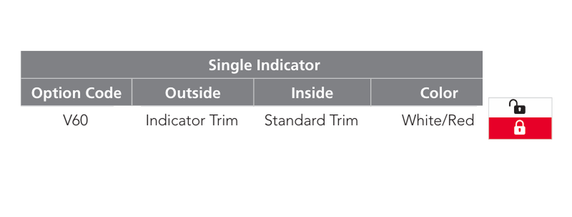

V60 (Single Indicator): Color White/Red
Outside: Indicator Trim
Inside: Standard Trim

Features
• Patented design
• Inside, outside or both sides of the door
• Highly visible from all angles
• Non-handed
• Multiple door thickness options
• Available with a variety of functions

Door Prep: ANSI/SDI A250.14

Door Thickness: 1-3/4" (44mm) standard - accomodates 1-11/16" - 1-15/16" (43mm - 49mm) doors

Minimum Stile: 4-1/2" (114mm)

Handing: Non-handed

Backset: 2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)

Latchbolt: Stainless steel, 1/2" (13mm) throw

Front: Wrought brass and stainless steel. 2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel

Strike: Wrought brass, bronze and stainless steel 808 curved lip ANSI 4-7/8" strike (standard)

Outside Locked Lever: Rigid outside locked levers provided standard

Warranty: Ten-year limited

Model: Sargent V60-10XU66 VSLL 26D
