Sargent NB8715J ETL 42" Top Latch Surface Vertical Rod Exit Device w/ 715 ETL Passage Lever Trim

Sargent NB8715J ETL Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 42" Device, For 7 Foot Door Height, with 715 ETL Passage Function, L Lever with Escutcheon, Less Bottom Rod, Hex Key Dogging

Designed for standard width stile applications on wood and metal doors.

Trim Function: Passage
Lever operable always, no cylinder

Features
• Single point top latching
• Top latchbolt projection adjustable through center case
• ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) Listed
• Tripping potential removed - no bottom strike
• Rods are 1/2" (13mm) brass, bronze or stainless steel

Specifications

Size: J - 42" (For 37" to 42" doors) - No cutting required for 42" (107cm) door

Dogging Feature: Hex key dogging

Door Type: Wood or Metal Doors

Door Thickness: 1-3/4" (44mm) minimum thickness

Stile: 4-1/2" (114mm) minimum stile width with trim and 3-1/2" (44mm) minimum stile without trim

Strike: 646 Top Strike (Panic and Fire Rated)
646 Top Strike
• Standard for both Panic & Fire (12-) Hardware
• Surface applied
• Fire Rated
• Black nylon coated

Mounting Fasteners: Supplied standard with wood and machine screws

Top Bolt: Stainless steel

Device Centerline from Finished Floor: 41" (1041mm) for Standard Applications

Door Height: 7 Foot

Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)

Projection: Pushbar Neutral – 3" (76mm). Pushbar Depressed – 2-1/8" (54mm)

Trim Specifications

Lever Style: L Lever

Lever Height: 2-3/8 Inch

Lever Length-Inches: 4-1/2 Inch

Trim Plate Width: 1-13/16 Inch

Trim Plate Height: 8-1/16 Inch

Product Projection: 3-9/16 Inch

Trim Plate Thickness: 13/16 Inch

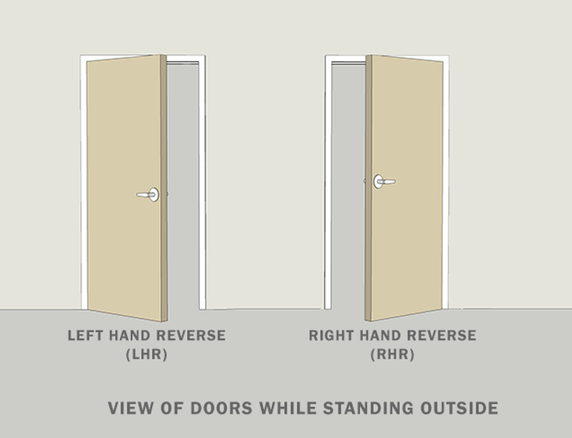

Trim Handing: Device is handed.

Finishes: 32D - Satin Stainless Steel, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, BSP - Black Suede Powder Coat,
3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 32 - Bright Stainless Steel

Model: Sargent NB8715J ETL 32D, NB8715J ETL 3, NB8715J ETL 4, NB8715J ETL 10, NB8715J ETL 32, NB8715J ETL 10B
