Sargent LCV40-8225 LNP Grade 1 Dormitory or Exit Mortise Lock, Less Cylinder, P Lever, LN Rose, Indicator with Text, Visual Single Indicator Outside, Unlocked/Locked - White/Red

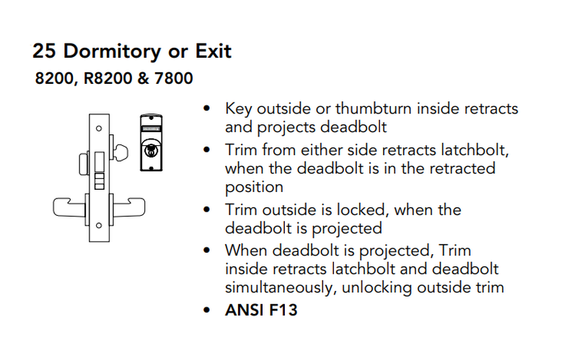

Function: Dormitory or Exit
• Key outside or thumbturn inside retracts and projects deadbolt
• Trim from either side retracts latchbolt, when the deadbolt is in the retracted position
• Trim outside is locked, when the deadbolt is projected
• When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
• ANSI F13
V40 - Single Indicator
Function: Indicator with Cylinder Prep
Outside Wording: Unlocked/Locked
Inside Wording: No Indicator
Color: White/Red
• For Doors 1-3⁄4" (44mm) thick standard
• Backset 2-3⁄4" (70mm) only
• Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x
1-1⁄4" (31mm), ANSI/BHMA Standard A156.115
• Front adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)
• Hubs for Levers 8200: cold forged steel
• Auxiliary Deadlatch is stainless steel and non-handed
• Easily field reversible (if no hand is specified RH will be provided)
• Strike: Brass, bronze or stainless steel; ANSI Standard; curved lip, non-handed (strike box optional)
• Keys: Two, nickel silver
• Cylinder: Lock Supplied Less Cylinder
• Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway
• Stile: 4-1/2" (114mm) minimum stile for 7800/8200/R8200, 4-3/4" (121mm) minimum
stile for electrical function locks
• Door Prep: ANSI/BHMA A156.115 or A156.115W modified per template (see template)
• Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks.
Warranty limited to replacement of lockbody and/or components
Maximum Strength & Durability
• Sargent 8200 Series UL Cycle above and beyond test completed at 16 Million Cycles.
Verification ID: V584148
• Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims
• Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard
• Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
• 1/8" (.125") cold-rolled steel inside front holds lock securely in door
• Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks
• Latchbolt is stainless steel with 3/4" (19mm) projection one-piece, anti-friction reversible latch
• Deadbolt is one-piece hardened stainless steel with 1" (25mm) projection
• Optional 8200 stainless steel hubs for Institutional setting
Model: Sargent LCV40-8225 LNP 26D
