Sargent LC-10XG71 Electromechanical Cylindrical Lever Lock (Fail Secure), Less Cylinder

Sargent LC-10XG71 Electromechanical Cylindrical Lever Lock (Fail Secure), Less Cylinder

Function Description: 71 Electromechanical (Fail Secure)
• Power off, unlocks outside lever
• Deadlocking latch
• Key retracts latch
• Inside lever always allows egress
• Voltage requirements: 12 or 24 VAC/DC
• Provided with ElectroLynx® 8-Pin Connector

Door Thickness: 1-3/4" to 2" (44mm to 51mm) thick doors standard
1-3/8" (35mm) thick door, 1- Option for Adapter plates

Backsets: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)

Bearing Assembly: Cast and machined stainless steel

Front: Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel
2-1/4" (57mm) x 1" (25mm) (included with 20-)

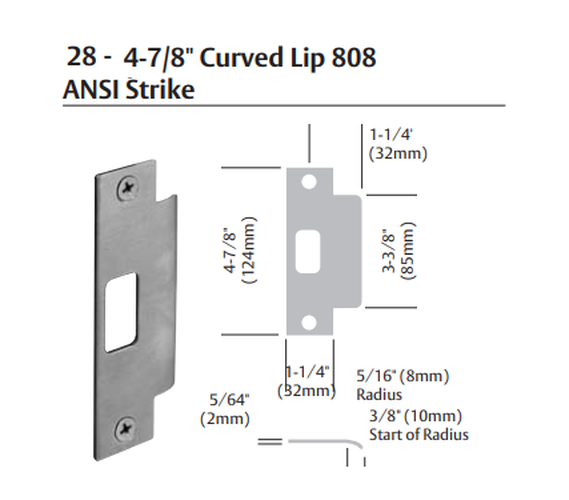

Strike: Wrought brass, bronze and stainless steel, 808 curved lip ANSI strike (28- option)

Hand: Non-handed

Latch: Stainless steel 1/2" (13mm) throw Brass 3/4" (19mm) throw for pairs of doors (41- option)

Roses: Heavy wrought brass, bronze or stainless steel

Masterkeying: Can be masterkeyed or grand masterkeyed Construction key systems available

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Minimum: 4-1/2" (114mm)

Door Prep: ANSI/BHMA A156.115

Warranty: Ten-year limited

Model: Sargent LC-10XG71 LL 26D, LC-10XG71 LL 3, LC-10XG71 LL 4, LC-10XG71 LL 10, LC-10XG71 LL 10B, LC-10XG71 LL 26
