Sargent LC-10XG70 LB Electromechanical Cylindrical Lever Lock (Fail Safe), Less Cylinder
In Stock
$731.43
Price:
$1,290.00
Instant Savings
$558.57
Sargent LC-10XG70 LB Electromechanical Cylindrical Lever Lock (Fail Safe), Less Cylinder

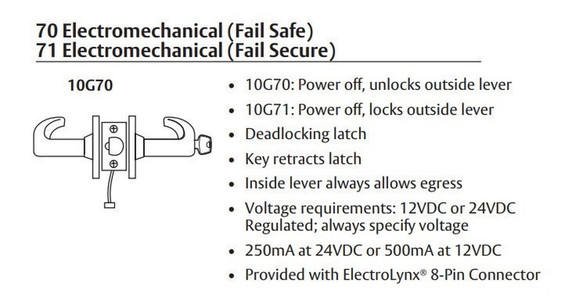

Function Description: 70 Electromechanical (Fail Safe)
• Power off, unlocks outside lever
• Deadlocking latch
• Key retracts latch
• Inside lever always allows egress
• Voltage requirements: 12VDC or 24VDC
• 250mA at 24VDC or 500mA at 12VDC
• Provided with ElectroLynx® 8-Pin Connector
Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
Backset: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)
Bearing Assembly: Cast and machined stainless steel
Front: Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel
Strike: 4-7/8" Curved Lip Strike (standard)
Hand: Non-handed
Latch: Stainless steel 1/2" (13mm) throw Brass
Roses: Heavy wrought brass, bronze or stainless steel
Cylinder: Less Cylinder
Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP
Minimum: 4-1/2" (114mm)
Door Prep: ANSI/BHMA A156.115
Warranty: Ten-year limited
Model: Sargent LC-10XG70 LB 26D, LC-10XG70 LB 3, LC-10XG70 LB 4, LC-10XG70 LB 10, LC-10XG70 LB 10B, LC-10XG70 LB 26
