Sargent LC-10XG54 LL Corridor Conventional Less Cylinder Lever Lock

Sargent LC-10XG54 LL Corridor Conventional Less Cylinder Lever Lock

Function Description: Corridor Lock - ANSI F90
• Deadlocking latch
• Latch by either lever unless outside lever is locked by push button inside or key outside
• Rotating inside lever or closing door releases inside button only, but does not unlock the outside lever if locked by key
• Key outside locks or unlocks outside lever and also retracts latchbolt when locked

Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Backset: 2-3/4" (70mm) backset w/ 1-1/8" front (standard)

Bearing Assembly: Cast and machined stainless steel

Front: Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel

Strike: 4-7/8" Curved Lip Strike (standard)

Hand: Non-handed

Latch: Stainless steel 1/2" (13mm) throw Brass

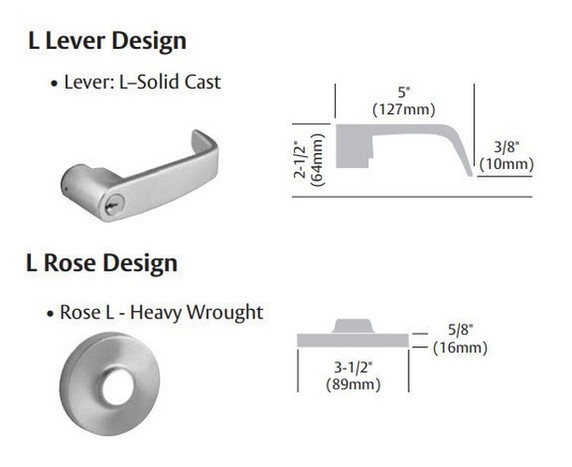

Roses: Heavy wrought brass, bronze or stainless steel

Cylinder: Less Cylinder

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Minimum: 4-1/2" (114mm)

Door Prep: ANSI/BHMA A156.115

Warranty: Ten-year limited

Freewheeling Locked Lever Option:
• Available on all locking functions except 10G70 and 10G71
• Provides protection from vandalism and added security
• Stops in the rose prevent the lever from traveling beyond 60° in either direction
• Not available in “J” Lever Design and some options

Model: Sargent LC-10XG54 LL 26D, LC-10XG54 LL 3, LC-10XG54 LL 4, LC-10XG54 LL 10, LC-10XG54 LL 10B, LC-10XG54 LL 26
