Sargent LC-10XG24 LB Entrance or Office Conventional Less Cylinder Lever Lock

Sargent LC-10XG24 LB Entrance or Office Conventional Less Cylinder Lever Lock

Function Description: Entrance or Office Lock - ANSI F82A
• Deadlocking latch
• Latch by either lever unless outside lever is locked by push button in inside lever
• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button

ss steel

Front: Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel

Strike: 4-7/8" Curved Lip Strike (standard)

Hand: Non-handed

Latch: Stainless steel 1/2" (13mm) throw Brass

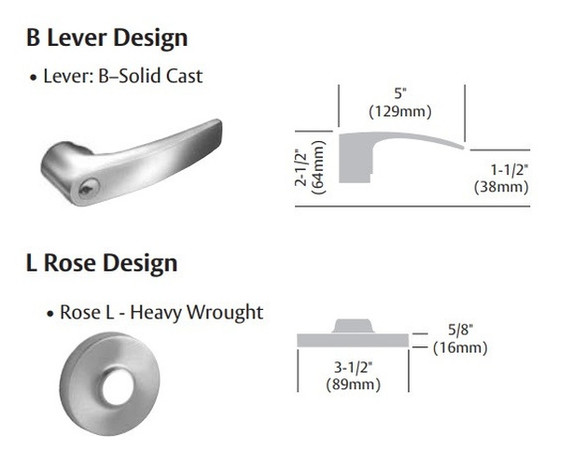

Roses: Heavy wrought brass, bronze or stainless steel

Cylinder: Less Cylinder

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Minimum: 4-1/2" (114mm)

Door Prep: ANSI/BHMA A156.115

Warranty: Ten-year limited

Freewheeling Locked Lever Option:
• Available on all locking functions except 10G70 and 10G71
• Provides protection from vandalism and added security
• Stops in the rose prevent the lever from traveling beyond 60° in either direction
• Not available in “J” Lever Design and some options

Model: Sargent LC-10XG24 LB 26D, LC-10XG24 LB 3, LC-10XG24 LB 4, LC-10XG24 LB 10, LC-10XG24 LB 10B, LC-10XG24 LB 26
