Sargent AD8615E 32" Concealed Vertical Rod Exit Device for Aluminum Doors, Passage - No Trim

Sargent AD8615E Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 32" Device, For 8 Foot Door Height, Passage Function, No trim, Hex Key Dogging

Designed for standard width stile applications on aluminum doors.

Trim Function: Passage - No trim
Lever operable always, no cylinder

Features
• Designed for standard width stile applications on aluminum doors
• Concealed rods for security and aesthetics
• Single and double door applications
• Devices are ANSI/BHMA A156.3 - Grade 1
• UL305 (Panic) listed only

Specifications

Size: E - 32" (For 24" to 32" doors) - No cutting required for 32" (81cm) door

Dogging Feature: Hex key dogging

Door Type: Aluminum Doors

Door Thickness: 1-3/4" (44mm) minimum thickness

Cladding: Available for 1/4" on 1/2" panels

Stile: 4-1/2" (114mm) minimum stile width

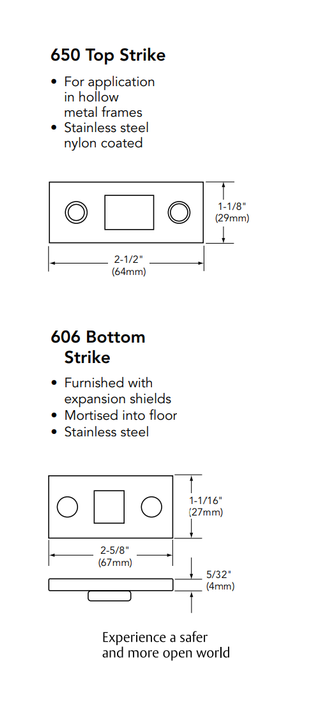

Strike: 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
650 Top Strike
• For application in hollowmetal frames
• Stainless steel nylon coated
606 Bottom Strike
• Furnished with expansion shields
• Mortised into floor
• Stainless steel

Mounting Fasteners: Supplied standard with machine screws

Top Bolt: Stainless steel

Device Centerline from Finished Floor: 41" (1041mm) for Standard Applications. 38" (965mm) for elementary schools

Door Height: 8 Foot

Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)

Projection: Pushbar Neutral – 3" (76mm). Pushbar Depressed – 2-1/8" (54mm)

Finishes: 32D - Satin Stainless Steel, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, BSP - Black Suede Powder Coat,
3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 32 - Bright Stainless Steel

Model: Sargent AD8615E RHR 32D, AD8615E LHR 32D, AD8615E RHR 3, AD8615E LHR 3, AD8615E RHR 4, AD8615E LHR 4, AD8615E RHR 10, AD8615E LHR 10, AD8615E RHR 32, AD8615E RHR 32, AD8615E RHR 10B, AD8615E LHR 10B
