Sargent 8506 Narrow Stile Rim Exit Device, Storeroom - No Trim

Sargent 8506 Grade 1 Rim Exit Device, Narrow Stile Pushpad, Storeroom Function, No trim, Hex Key Dogging

Designed for narrow stile applications

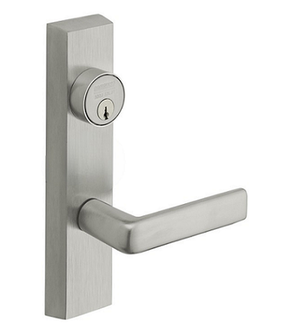

Trim Function: Storeroom - No trim
Key unlocks Trim, Trim retracts latch/Trim relocks when key is removed

Features:
• Designed for narrow stile applications (e.g., aluminum frame full glass doors)
• Single and double doors with mullion
• Single point rim latching device
• Quiet operation and solid security
• Devices are ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) listed

Specifications

Size:
E - 32" (For 24" to 32" doors) - No cutting required for 32" (81cm) door
F - 36" (For 33" to 36" doors) - No cutting required for 36" (91cm) door
J - 42" (For 37" to 42" doors) - No cutting required for 42" (107cm) door
G - 48" (For 43" to 48" doors) - No cutting required for 48" (122cm) door

Dogging Feature: Hex key dogging

Door Type: Wood or Metal Doors

Door Thickness: 1-3/4" (44mm) minimum thickness

Stile: 2" (114mm) minimum stile (Less Trim)

Strike:
657 Standard Strike for 8500
• Surface applied or mortised
• For use on frames with blade stop or integral stop
• Black nylon coated

656 Mullion Strike
• Surface applied
• Use with 980 mullions
• Black nylon coated

Mounting Fasteners: Supplied standard with wood and machine screws

Latch Bolt: Stainless steel, 3/4" (19mm) throw

Device Centerline from Finished Floor: 41" (1041 mm) for Standard Applications

Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)

Projection: Pushbar Neutral – 3" (76mm). Pushbar Depressed – 2-1/8" (54mm)

Finishes: 32D - Satin Stainless Steel, 10 - Satin Bronze Clear Coated, 4 - Satin Brass, BSP - Black Suede Powder Coat,
3 -Bright Brass, 10B - Dark Oxidized Satin Bronze Oil Rubbed, 32 - Bright Stainless Steel

Model: Sargent 8506 32D, 8506 3, 8506 4, 8506 10, 8506 32, 8506 10B
